HeFei Vinncom Electronic Technology Co.,Ltd.
Hot Products
Home /

Hot Products

DC-3.8GHz Rf Attenuator
DC-3.8GHz Rf Attenuator
DC-3.8GHz Rf Attenuator
DC-3.8GHz Rf Attenuator
DC-3.8GHz Rf Attenuator

DC-3.8GHz Rf Attenuator

Product Details

Place of Origin: CHINA

Brand Name: Vinncom

Certification: ROHS ISO9000

Model Number: VN-AT-3.8G-100W-ONx

Payment & Shipping Terms

Minimum Order Quantity: 5 PCS

Price: Negotiable

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 300pcs per day

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

DC-3.8GHz Rf Attenuator

,

IP65 Adjustable Rf Attenuator

,

DC-3.8GHz 100w dummy load

Connector:
N Male - N Female
Frequency:
DC-3.8GHz DC-4GHz
Design:
Integrated Design
Connector:
N Male - N Female
Frequency:
DC-3.8GHz DC-4GHz
Design:
Integrated Design
Description

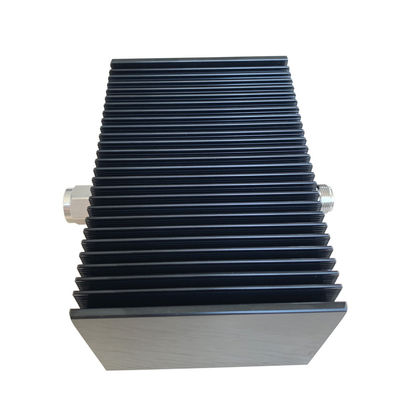

DC-3.8GHz Rf Attenuator

DC-3.8GHz 100 Watts N Male-N Female 3~30dB RF Coaxial Attenuators



  • Good VSWR
  • Attenuation Range Wide
  • High-gain



Part Number VN-AT-3.8G-100W-ONX
Operating Frequency ( MHz ) DC-3800
Impedance ( Ohm ) 50
VSWR ≤1.25
Application Indoor & Outdoor
Degree of Protection IP65
Handling Power (Watt, max) 100
Interface N Male - N Female
Operating Temperature ( ℃ ) -40 ~ + 80
Attenuation(dB) 3 5 6 10 15 20 30
Attenuation Tolerance(dB) ±0.5 ±0.5 ±0.6 ±0.8 ±1 ±1.5 ±1.8
Dimension (mm)(L×W×H, excl connector) 150×100X73
Net Weight (g) 1150± 20
Packing Dimensions (mm,L×W×H) 300 × 170 ×120
Packing Carton Size (mm,L×W×H) 620 × 500 × 190
ROHS Compliance Yes



DC-3.8GHz Rf Attenuator 0
