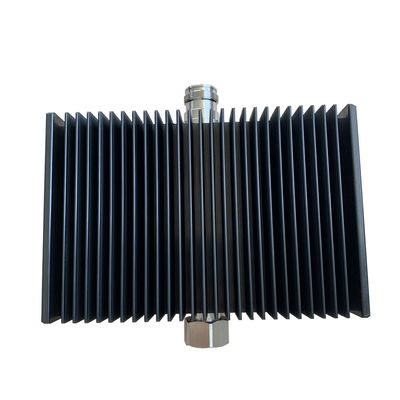

DC-4GHz 4.3-10 Female -4.3-10 Male 100W Attenuator

Name: DC-4GHz 4.3-10 Female -4.3-10 Male 100W Attenuator
Brand: HeFei Vinncom Electronic Technology Co.,Ltd.
SKU: VN-AT-3.8G-100W-OPX
Price: 6.80 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: Vinncom

Certification: ROHS ISO9000

Model Number: VN-AT-3.8G-100W-OPX

Payment & Shipping Terms

Minimum Order Quantity: 5 PCS

Price: Negotiable

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 300pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                          3.8G Mini DIN Female dummy load, 100W DC-3.8G dummy load, 50 ohm dummy load DC-3.8G


Connector:	4.3-10 Male - 4.3-10 Female	Frequency:	DC-3.8GHz DC-4GHz
Design:	Integrated Design

Connector:	4.3-10 Male - 4.3-10 Female
Frequency:	DC-3.8GHz DC-4GHz
Design:	Integrated Design

Description

DC-4GHz 4.3-10 Female -4.3-10 Male 100W Attenuator

DC-3.8GHz 100 Watts 4.3-10 Male-4.3-10 Female 3~30dB RF Coaxial Attenuators

Wide working frequency range
Low standing wave
High attenuation accuracy

VN-AT-4G-100W-PF-PM.pdf

Part Number	VN-AT-4G-100W-OPX
Operating Frequency ( MHz )	DC-4G
Impedance ( Ohm )	50
VSWR	≤1.25
Application	Indoor & Outdoor
Degree of Protection	IP65
Handling Power (Watt, max)	100
Interface	4.3-10 Male – 4.3-10 Female
Operating Temperature ( ℃ )	-40 ~ + 80
Attenuation(dB)	3	5	6	10	15	20	30
Attenuation Tolerance(dB)	±0.5	±0.5	±0.6	±0.8	±1	±1.5	±1.8
Dimension (mm)(L×W×H, excl connector)	150×100X73
Net Weight (g)	1150± 20
Packing Dimensions (mm,L×W×H)	300 × 170 ×120
Packing Carton Size (mm,L×W×H)	620 × 500 × 190
ROHS Compliance	Yes

RF attenuators usually can be used to reduce the power of the signal within many RF circuit designs and RF systems. These RF attenuators can be fixed, switched,surface mounted or even continuously variable.

Vinncom has many types of RF attenuators with different frequency range. Vinncom also can supply attenuators with good PIM value(-160 dbc@43dbm*2) in some RF syetems.
