DC-3800MHz Rf Attenuator
  • name
  • name
  • name
  • name

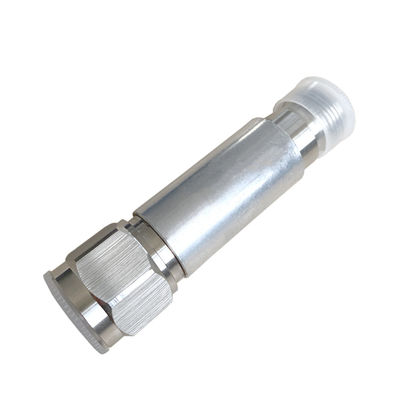

DC-3800MHz Rf Attenuator

MOQ: 5 PCS
Price: Negotiable
Payment Method: L/C, D/A, D/P, T/T
Supply Capacity: 300pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Vinncom
Certification
ROHS ISO9000
Model Number
VN-AT-3.8/6G-2~5W-ONX
Connector:
N Male -N Female
Frequency:
DC-3.8GHz DC-6GHz
Design:
Integrated Design
Highlight:

DC-3800MHz Rf Attenuator

,

N Male Rf Attenuator

,

5W rf step attenuator

Product Description

2~5W N Male To N Female DC-3800MHz DC-6G 3db 6db 10db 15db 20db 30db 40db Rf Attenuator



  • Low standing wave
  • High attenuation accuracy
  • High indicator stability



Part Number VN-AT-3.8/6G-2~5W-ONX
Operating Frequency ( MHz ) DC-3800,DC-6000
Impedance ( Ohm ) 50
VSWR ≤1.20@DC-3800; ≤1.30@3800-6000
Application Indoor & Outdoor
Degree of Protection IP65
Handling Power (Watt) 2~5(max)
Interface N Male - N Female
Operating Temperature ( ℃ ) -40 ~ + 80
Attenuation(dB) 3 5 6 10 15 20 30
Attenuation Tolerance(dB) ±0.4 ±0.4 ±0.5 ±0.7 ±0.8 ±0.8 ±08
Dimension (mm) 35×Φ18(excludes connectors)71.4×Φ18(includes connectors)
Net Weight (g) 70
Packing Dimensions (mm,L×W×H) 80 × 30 ×30
Packing Carton Size (mm,L×W×H) 220 × 220 × 215
ROHS Compliance Yes




Tags:

fixed rf attenuator,

fixed coaxial attenuator,

precision attenuator
