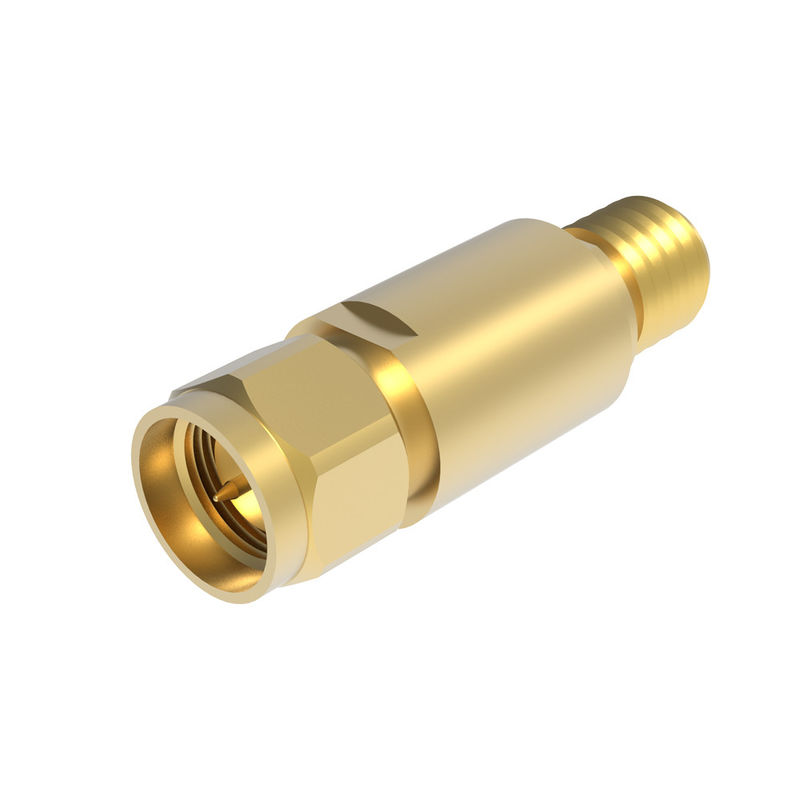

2W 18G SMA Male SMA Female 50ohm Precision Electronic Attenuator

Name: 2W 18G SMA Male SMA Female 50ohm Precision Electronic Attenuator
Brand: Vinncom
SKU: VN-AT-18G-2W-SMA
Rating: 4.7 (169 reviews)

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: RoHs ISO9000

Model Number: VN-AT-18G-2W-SMA

Payment & Shipping Terms

Minimum Order Quantity: 5 pcs

Price: negotiation

Packaging Details: carton and box or pallet

Delivery Time: half a month

Payment Terms: T/T, D/A, D/P, L/C

Supply Ability: 400 pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                            50ohm precision attenuator, 2W precision attenuator, SMA  electronic attenuator


Operating Frequency:	DC-18 GHZ	Impedance ( Ohm ):	50
Application:	Indoor & Outdoor	Degree Of Protection:	IP65
Operating Temperature ( ℃ ):	-55~+125℃

Operating Frequency:	DC-18 GHZ
Impedance ( Ohm ):	50
Application:	Indoor & Outdoor
Degree Of Protection:	IP65
Operating Temperature ( ℃ ):	-55~+125℃

Description

2W 18G SMA Male SMA Female 50ohm Precision Electronic Attenuator

This datasheet and customers can put forward their our needs according the below specs.

Low standing wave
High attenuation accuracy
High indicator stability

Part Number	VN-AT-18G-2W-SMA
Operating Frequency	DC-18 GHZ
Impedance ( Ohm )	50
Application	Indoor & Outdoor
Degree of Protection	IP65
Handling Power (Watt, max)	2W
Interface	SMA
Operating Temperature ( ℃ )	-55~+125℃
Attenuation(dB)	1~10	11~20	21~30	40	50	60	VSWR
DC-4GHz	±0.4	±0.5	±0.7	±0.7	±0.7	±0.8	≤1.20
DC-8GHz	±0.5	±0.6	±0.8	±0.8	±0.8	±0.9	≤1.25
DC-12.4GHz	±0.6	±0.7	±0.9	±0.9	±1.0	±1.1	≤1.25
DC-18GHz	±0.6	±0.8	±1.0	±1.2	±1.5	±1.5	≤1.30
Dimension (mm)	Φ9*27/30mm
Net Weight (g)	/
Packing Dimensions (mm,L×W×H)	/
Packing Carton Size (mm,L×W×H)	/
ROHS Compliance	Yes
