Aluminum 10W SMA Attenuator Microwave 18G For IBS And DAS
  • name
  • name
  • name
  • name

Aluminum 10W SMA Attenuator Microwave 18G For IBS And DAS

MOQ: 5 PCS
Price: negotiation
Standard Packaging: 50pcs in a carton
Delivery Period: depends on quantity
Payment Method: T/T, D/A, L/C, D/P
Supply Capacity: 300pca per day
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinnocm
Certification
RoHs ISO9000
Model Number
VN-AT-18G-10W-SMA
Operating Frequency:
DC-18 GHZ
Impedance ( Ohm ):
50
Application:
Indoor & Outdoor
Degree Of Protection:
IP65
Handling Power (Watt, Max):
10W
Operating Temperature ( ℃ ):
-55~+125℃
Material:
Aluminum/copper
Color:
Black
Package:
Box
Highlight:

Aluminum sma attenuator

,

DAS sma attenuator

,

10W attenuator microwave

Product Description

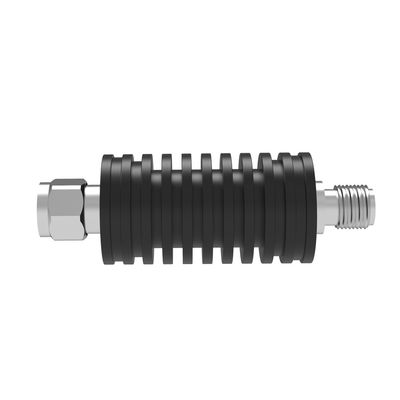

High Frequency 18G 10W Round Type RF Attenuator SMA Male-SMA Female



  • Good VSWR
  • Attenuation Range Wide
  • High-gain



Part Number VN-AT-18G-10W-SMA
Operating Frequency DC-18 GHZ
Impedance ( Ohm ) 50
Application Indoor & Outdoor
Degree of Protection IP65
Handling Power (Watt, max) 10W
Interface SMA Male-SMA Female
Operating Temperature ( ℃ ) -55~+125℃
Attenuation(dB) 1~10 11~20 21~30 31~40 VSWR
DC~4 ±0.4 ±0.5 ±0.6 ±0.7 ≤1.20
DC~8 ±0.5 ±0.6 ±0.8 ±0.8 ≤1.25
DC~12.4 ±0.6 ±0.7 ±0.8 ±0.9 ≤1.35
DC~18 ±0.8 ±0.9 ±1.0 ±1.2 ≤1.45
Dimension (mm) Φ15.8*47.5mm
Net Weight (g) /
Packing Dimensions (mm,L×W×H) /
Packing Carton Size (mm,L×W×H) /
ROHS Compliance Yes



Aluminum 10W SMA Attenuator Microwave 18G For IBS And DAS 0Aluminum 10W SMA Attenuator Microwave 18G For IBS And DAS 1


Related Products
Our 698-2700MHz/698-3800Mhz Directional Coupler And Power Splitter For
Aluminum 10W SMA Attenuator Microwave 18G For IBS And DAS 2Aluminum 10W SMA Attenuator Microwave 18G For IBS And DAS 3


Product Application:IBS And DAS

Aluminum 10W SMA Attenuator Microwave 18G For IBS And DAS 4Aluminum 10W SMA Attenuator Microwave 18G For IBS And DAS 5
Our Factory
VINNCOM is located in Hefei China with more than 16,000 square meters manufacturer center.
Our products include power splitter,coupler, hybrid, dummy load, attenuator, combiner,waveguide components,etc.
Aluminum 10W SMA Attenuator Microwave 18G For IBS And DAS 6Aluminum 10W SMA Attenuator Microwave 18G For IBS And DAS 7

Our Main Tester
Aluminum 10W SMA Attenuator Microwave 18G For IBS And DAS 8Aluminum 10W SMA Attenuator Microwave 18G For IBS And DAS 9

 Packaging
Aluminum 10W SMA Attenuator Microwave 18G For IBS And DAS 10Aluminum 10W SMA Attenuator Microwave 18G For IBS And DAS 11


FAQ
1.Can we get a free sample firstly?
Yes,free sample for testing approval is available to our customers.But customer should pay shipping fee.

2.What is your MOQ?
No MOQ for any sample test,at least 10pcs after sample order.

3. Is OEM/ODM Service available?
Yes,the production base of CNCR has the strong ability to offer OEM/ODM service. But it will have requirement for the order quantity.

4. What's your company advantage?
We have our own R&D, production lines, marketing and sales team, professional technical support center.
We specialize in offering the whole network solution and all equipments needed in this solution.

5. Please let us know more details about Trade Terms, payment term and leadtime.
Payment Terms: 100% TT in advance, for the sample order
Price Terms: FOB Shanghai/ShenZhen
Internal Express: EMS,DHL,Fedex,TNT,UPS,by sea or your own shipping agent
Leadtime: Sample order,1-3 business days; mass production 7-15 business days after the deposit.

6.How about the Warranty?
The first year: replace the new equipment if the your products failed.
The second and third year: supplying free maintanence service, just charge components cost fee and labor fee



Welcom to inquiry...
