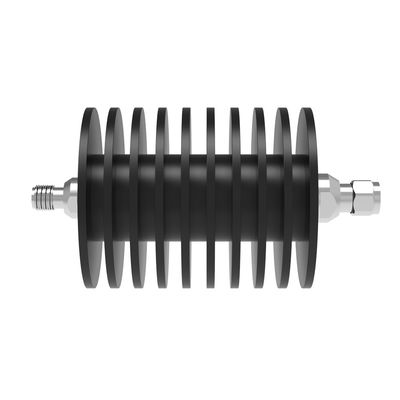

25W Round Black SMA RF Attenuator IP65 Protection Male Female
  • name
  • name
  • name
  • name

25W Round Black SMA RF Attenuator IP65 Protection Male Female

MOQ: 5 pcs
Price: negotiation
Delivery Period: depends on quantity
Payment Method: T/T, L/C, D/A, D/P
Supply Capacity: 200pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
ISO 9000 ROHS
Model Number
VN-AT-18G-25W-SMA
Operating Frequency:
DC-18 GHZ
Impedance ( Ohm ):
50
Application:
Indoor & Outdoor
Degree Of Protection:
IP65
Handling Power (Watt, Max):
25W
Interface:
SMA Male-SMA Female
Operating Temperature ( ℃ ):
-55~+125℃
L×W×H, Excl:
Φ44*54mm
Highlight:

IP65 RF Attenuator

,

25W RF Attenuator

,

SMA rf power attenuator

Product Description

RF 25W DC-18G Round Type Black Color High Frequency SMA Male-SMA Female Attenuator



  • Wide band
  • Good VSWR
  • Attenuation Range Wide



Part Number VN-AT-18G-25W-SMA
Operating Frequency DC-18 GHZ
Impedance ( Ohm ) 50
Application Indoor & Outdoor
Degree of Protection IP65
Handling Power (Watt, max) 25W
Interface SMA Male-SMA Female
Operating Temperature ( ℃ ) -55~+125℃
Attenuation(dB) 1~10 11~20 21~30 40~50 VSWR
DC~4 ±0.4 ±0.5 ±0.6 ±0.7 ≤1.20
DC~8 ±0.5 ±0.6 ±0.8 ±0.8 ≤1.25
DC~12.4 ±0.7 ±0.8 ±0.9 ±1.0~1.1 ≤1.35
DC~18 ±0.8 ±0.9 ±1.1 ±1.2~1.3 ≤1.45
Dimension (mm)(L×W×H, excl connector) Φ44*54mm
Net Weight (g) /
Packing Dimensions (mm,L×W×H) /
Packing Carton Size (mm,L×W×H) /
ROHS Compliance Yes



25W Round Black SMA RF Attenuator IP65 Protection Male Female 025W Round Black SMA RF Attenuator IP65 Protection Male Female 1
Related Product:18G 25W N Male-N Female RF Attenuator
25W Round Black SMA RF Attenuator IP65 Protection Male Female 225W Round Black SMA RF Attenuator IP65 Protection Male Female 3
Our Company
VINNCOM is located in Hefei China with more than 16,000(total 35,000) square meters manufacturer center. Our products include power splitter,coupler,hybrid, dummy load,attenuator, combiner,waveguide components,etc
We have senior R&D team who are specialized in the research of RF components for market demands based on the designs of micro-strip ,waveguide,multilayers,semiconductor and film technology.
We are supplying some big players in the world and products are widely used in DAS, Navigation,telecom systems,sensor systems and fibers,etc.
We believe that co-operation is based on multi-win and sharing ,and we are looking forward to establishing good relationship with you all over the world.

25W Round Black SMA RF Attenuator IP65 Protection Male Female 425W Round Black SMA RF Attenuator IP65 Protection Male Female 5

Product Application
25W Round Black SMA RF Attenuator IP65 Protection Male Female 625W Round Black SMA RF Attenuator IP65 Protection Male Female 7

Package And Delivery
25W Round Black SMA RF Attenuator IP65 Protection Male Female 825W Round Black SMA RF Attenuator IP65 Protection Male Female 9

25W Round Black SMA RF Attenuator IP65 Protection Male Female 1025W Round Black SMA RF Attenuator IP65 Protection Male Female 11




FAQ
1.Can we get a free sample firstly?
Yes,free sample for testing approval is available to our customers.But customer should pay shipping fee.

2.What is your MOQ?
No MOQ for any sample test,at least 10pcs after sample order.

3. Is OEM/ODM Service available?
Yes,the production base of CNCR has the strong ability to offer OEM/ODM service. But it will have requirement for the order quantity.

4. What's your company advantage?
We have our own R&D, production lines, marketing and sales team, professional technical support center.
We specialize in offering the whole network solution and all equipments needed in this solution.

5. Please let us know more details about Trade Terms, payment term and leadtime.
Payment Terms: 100% TT in advance, for the sample order
Price Terms: FOB Shanghai/ShenZhen
Internal Express: EMS,DHL,Fedex,TNT,UPS,by sea or your own shipping agent
Leadtime: Sample order,1-3 business days; mass production 7-15 business days after the deposit.

6.How about the Warranty?
The first year: replace the new equipment if the your products failed.
The second and third year: supplying free maintanence service, just charge components cost fee and labor fee


Welcom to inquiry...
