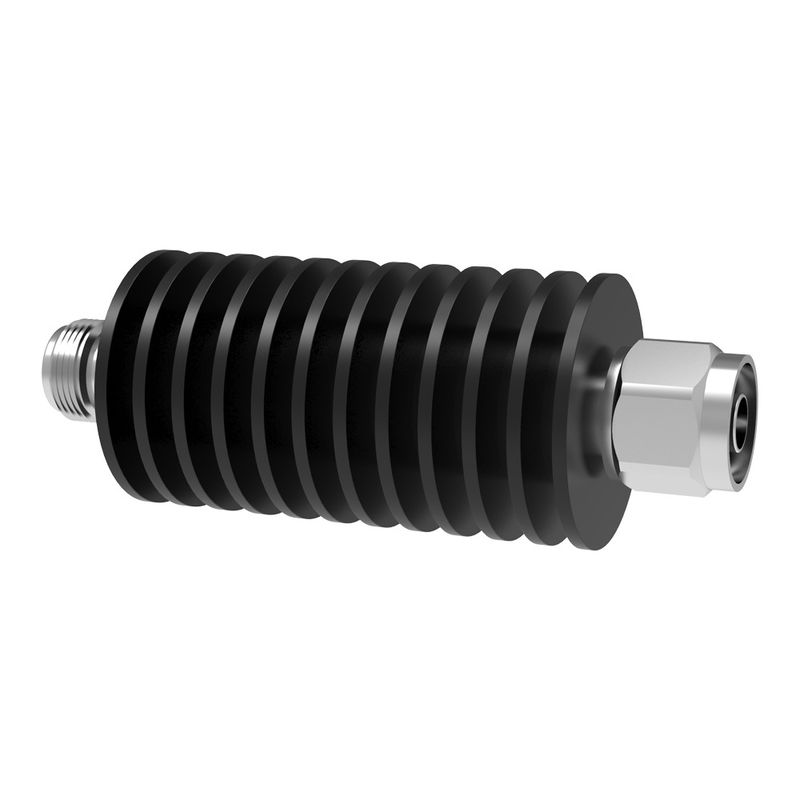

ODM 50 Watt 40dB Coaxial Attenuator N Male N Female In Microwave
  • name
  • name
  • name
  • name

ODM 50 Watt 40dB Coaxial Attenuator N Male N Female In Microwave

MOQ: 5 pcs
Price: negotiation
Standard Packaging: box/carton
Delivery Period: depends on quantity
Payment Method: T/T, L/C, D/A, D/P
Supply Capacity: 300pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
RoHs ISO9000
Model Number
VN-AT-18G-30W-ONX
Operating Frequency:
DC-18 GHZ
Impedance ( Ohm ):
50
Application:
Indoor & Outdoor
Degree Of Protection:
IP65
Handling Power (Watt, Max):
30W
Interface:
N Male-N Female
Operating Temperature ( ℃ ):
-55~+125℃
Highlight:

40dB coaxial attenuator

,

ODM coaxial attenuator

,

ODM 50 watt attenuator

Product Description

18GHz 30W N Male-N Female VSWR 1.4 40dB RF Attenuator



  • Wide working frequency range
  • Low standing wave
  • High attenuation accuracy



Part Number VN-AT-18G-30W-ONX
Operating Frequency DC-18 GHZ
Impedance ( Ohm ) 50
Application Indoor & Outdoor
Degree of Protection IP65
Handling Power (Watt, max) 30W
Interface N Male-N Female
Operating Temperature ( ℃ ) -55~+125℃
Attenuation(dB) 1~10 11~20 21~30 31~40 VSWR
DC~4 ±0.4 ±0.5 ±0.6 ±0.7 ≤1.20
DC~8 ±0.5 ±0.6 ±0.8 ±0.8 ≤1.25
DC~12.4 ±0.6 ±0.7 ±0.8 ±0.9 ≤1.35
DC~18 ±0.8 ±0.9 ±1.2 ±1.5 ≤1.45
Dimension (mm)(L×W×H, excl connector) Φ38*70mm
Net Weight (g) /
Packing Dimensions (mm,L×W×H) /
Packing Carton Size (mm,L×W×H) /
ROHS Compliance Yes



ODM 50 Watt 40dB Coaxial Attenuator N Male N Female In Microwave 0ODM 50 Watt 40dB Coaxial Attenuator N Male N Female In Microwave 1

Application
ODM 50 Watt 40dB Coaxial Attenuator N Male N Female In Microwave 2ODM 50 Watt 40dB Coaxial Attenuator N Male N Female In Microwave 3
FAQ
1.Can we get a free sample firstly?
Yes,free sample for testing approval is available to our customers.But customer should pay shipping fee.

2.What is your MOQ?
No MOQ for any sample test,at least 10pcs after sample order.

3. Is OEM/ODM Service available?
Yes,the production base of CNCR has the strong ability to offer OEM/ODM service. But it will have requirement for the order quantity.

4. What's your company advantage?
We have our own R&D, production lines, marketing and sales team, professional technical support center.
We specialize in offering the whole network solution and all equipments needed in this solution.

5. Please let us know more details about Trade Terms, payment term and leadtime.
Payment Terms: 100% TT in advance, for the sample order
Price Terms: FOB Shanghai/ShenZhen
Internal Express: EMS,DHL,Fedex,TNT,UPS,by sea or your own shipping agent
Leadtime: Sample order,1-3 business days; mass production 7-15 business days after the deposit.

6.How about the Warranty?
The first year: replace the new equipment if the your products failed.
The second and third year: supplying free maintanence service, just charge components cost fee and labor fee




Tags:

fixed rf attenuator,

fixed coaxial attenuator,

precision attenuator
