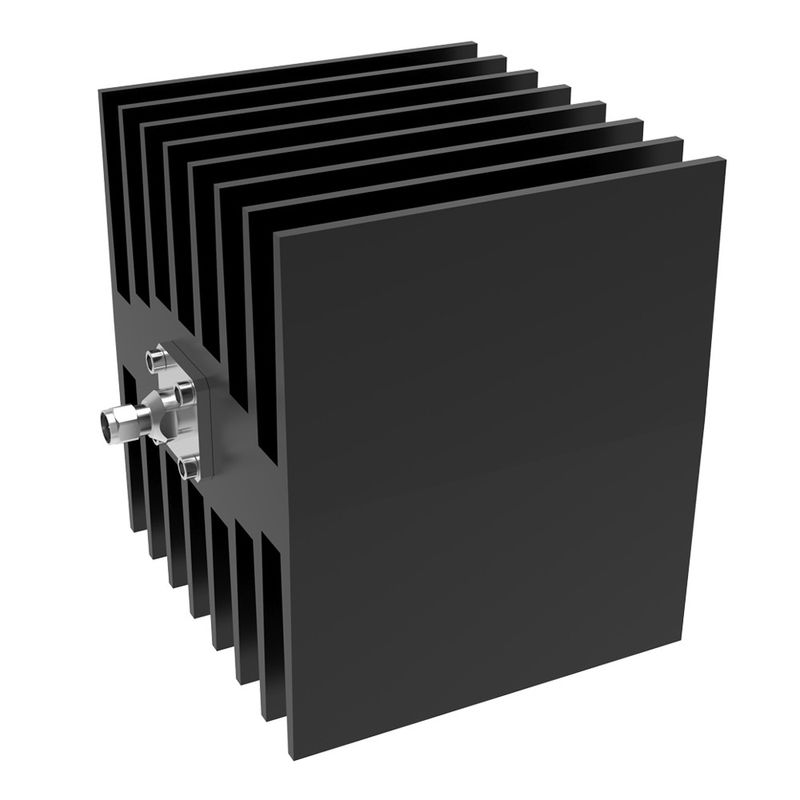

DC 18GHz 100W 60dB High Power Attenuator RF Components

DC 18GHz 100W 60dB High Power Attenuator RF Components

MOQ: 5 pcs
Price: negotiation
Standard Packaging: box/carton
Delivery Period: depends on quantity
Payment Method: T/T, L/C, D/A, D/P
Supply Capacity: 300pcs per day
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
RoHS/ISO9000
Model Number
VN-AT-18G-100W-SMA
Operating Frequency:
DC-18 GHZ
Impedance ( Ohm ):
50
Application:
Indoor & Outdoor
Degree Of Protection:
IP65
Handling Power (Watt, Max):
100W
Interface:
SMA Male - SMA Female
Operating Temperature ( ℃ ):
-40 ~ + 80
VSWR:
≤1.45
Highlight:

60dB high power attenuator

,

100W high power attenuator

,

High Power 60dB attenuator

Product Description

DC-18GHz 100W SMA Male-SMA Female RF Components 60dB Attenuator



  • Wide working frequency range
  • Low standing wave
  • High attenuation accuracy

Part Number VN-AT-18G-100W-SMA
Operating Frequency DC-18 GHZ
Impedance ( Ohm ) 50
Application Indoor & Outdoor
Degree of Protection IP65
Handling Power (Watt, max) 100W
Interface SMA Male - SMA Female
Operating Temperature ( ℃ ) -40 ~ + 80
Attenuation(dB) 3 6~10 11~20 21~30 31~40 41~60 VSWR
DC-4GHz ±0.4 ±0.7 ±0.7 ±0.8 ±0.8 ±1.0 ≤1.20
DC-8GHz ±0.5 ±0.8 ±0.8 ±0.9 ±0.9 ±1.1 ≤1.25
DC-12.4GHz ±0.6 ±0.9 ±0.9 ±1.0 ±1.1 ±1.2 ≤1.35
DC-18GHz ±0.8 ±1.5 ±1.5 ±1.3 ±1.4 ±1.4
Dimension (mm), excl connector) 120x110x101mm
Net Weight (g) /
Packing Dimensions (mm,L×W×H) /
Packing Carton Size (mm,L×W×H) /
ROHS Compliance Yes



DC 18GHz 100W 60dB High Power Attenuator RF Components 0DC 18GHz 100W 60dB High Power Attenuator RF Components 1
Application
The coaxial attenuator can control the output power of the local oscillator in the microwave superheterodyne receiver to obtain the best noise figure and frequency conversion loss to achieve the best reception effect. It can also be used as a decoupling element between the oscillator and the load. Currently widely used in mobile communications, aviation, radar, scientific research, radio and television and other fields.
DC 18GHz 100W 60dB High Power Attenuator RF Components 2

Company Profile
DC 18GHz 100W 60dB High Power Attenuator RF Components 3
Packing & Delivery
DC 18GHz 100W 60dB High Power Attenuator RF Components 4
DC 18GHz 100W 60dB High Power Attenuator RF Components 5

DC 18GHz 100W 60dB High Power Attenuator RF Components 6

FAQ
Q1: Are you a factory or a trade company? A1: We are factory specialised in kinds of Microwave & mmWave components.
Q2: Where are you located? A2: We are in HeFei city, near Shanghai.
Q3: How many years have you engaged in this business? A3: We have engaged in this business more than 18 years, and we are professional in Microwave components.
Q4: How long is your delivery time(lead time)? A4: Within 5 days if the product is in stock, otherwise will take about 20days, after receiving the deposit.
Q5: What’s the MOQ (Minimum Order Quantity)? A5: Generally speaking 10pcs, but it depends on models.
Q6: It is all right to add our logo on your products? A7: Yes, we can do printing logo.
Q7: Why choose us? A8: As a professional supplier for microwave components more than 10 years, we win our clients with good quality and competitive price. QC inspection before shipping, strong quality control process.
