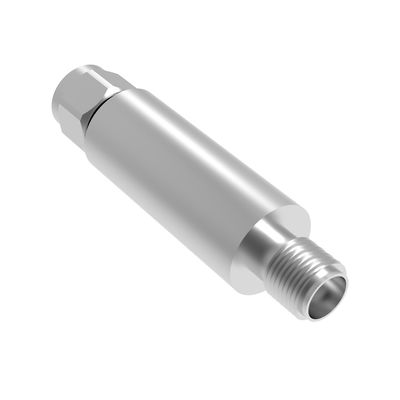

40dB-90dB RF Fixed Coaxial Attenuator SMA DC 26GHz 2W Male Female
  • name
  • name
  • name
  • name

40dB-90dB RF Fixed Coaxial Attenuator SMA DC 26GHz 2W Male Female

MOQ: 5 pcs
Price: negotiation
Standard Packaging: box/carton
Delivery Period: depends on quantity
Payment Method: T/T, L/C, D/A, D/P
Supply Capacity: 300pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
RoHS ISO9000
Model Number
VN-AT-26G-2W-SMA
Operating Frequency:
DC-26 GHZ
Impedance ( Ohm ):
50
Application:
Indoor & Outdoor
Degree Of Protection:
IP65
Handling Power (Watt, Max):
2W
Operating Temperature ( ℃ ):
-40 ~ + 80
Highlight:

2W Fixed Coaxial Attenuator

,

RF Fixed Coaxial Attenuator

,

90dB rf attenuator sma

Product Description

DC-26GHz 2W SMA Male-SMA Female 40-90dB Attenuator



  • Wide working frequency range
  • Low standing wave
  • High attenuation accuracy





Part Number VN-AT-26G-2W-SMA
Operating Frequency DC-26 GHZ
Impedance ( Ohm ) 50
Application Indoor & Outdoor
Degree of Protection IP65
Handling Power (Watt, max) 2W
Interface SMA Male-SMA Female
Operating Temperature ( ℃ ) -40 ~ + 80
Attenuation(dB) 40 50 60 70 80 90 VSWR
DC-4GHz ±0.5 ±0.5 ±0.8 ±1 ±1 ±1.5 ≤1.15
DC-8GHz ±0.5 ±0.6 ±1 ±1 ±1 ±1.5 ≤1.2
DC-12.4GHz ±0.7 ±0.8 ±1 ±1.2 ±1.2 ±2 ≤1.25
DC-18GHz ±1 ±1.5 ±1.5 ±1.5 ±1.5 ±2 ≤1.3
DC~26.5 ±1.5 ±2 ±2 ±2 ±1 ±1.5 ≤1.35
Dimension (mm)(L×W×H, excl connector) Φ10*24mm
Net Weight (g) /
Packing Dimensions (mm,L×W×H) /
Packing Carton Size (mm,L×W×H) /
ROHS Compliance Yes



40dB-90dB RF Fixed Coaxial Attenuator SMA DC 26GHz 2W Male Female 040dB-90dB RF Fixed Coaxial Attenuator SMA DC 26GHz 2W Male Female 1
Our Company
40dB-90dB RF Fixed Coaxial Attenuator SMA DC 26GHz 2W Male Female 2
Product Application
40dB-90dB RF Fixed Coaxial Attenuator SMA DC 26GHz 2W Male Female 3
