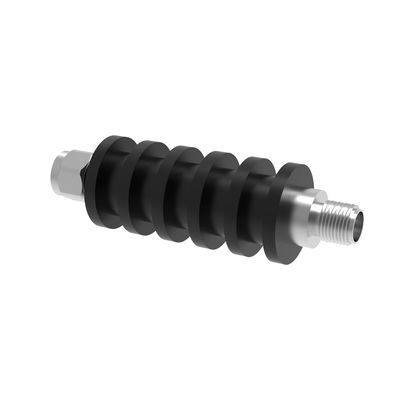

ISO9000 Outdoor 5W 50dB RF Attenuator DC 26GHz

ISO9000 Outdoor 5W 50dB RF Attenuator DC 26GHz

MOQ: 5 pcs
Price: negotiation
Delivery Period: depends on quantityDC-26GHz 5W SMA Male-SMA Female xdB Attenuator
Payment Method: T/T, L/C, D/A, D/P
Supply Capacity: 300pcs per day
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
RoHS ISO9000
Model Number
VN-AT-26G-5W-SMA
Operating Frequency:
DC-26 GHZ
Impedance ( Ohm ):
50
Application:
Indoor & Outdoor
Degree Of Protection:
IP65
Handling Power (Watt, Max):
5W
Operating Temperature ( ℃ ):
-40 ~ + 80
Highlight:

DC 26GHz RF Attenuator

,

5W RF Attenuator

,

50dB radio attenuator

Product Description



DC-26GHz 5W SMA Male-SMA Female 3-50dB Attenuator



  • Wide working frequency range
  • Low standing wave
  • High indicator stability



Part Number VN-AT-26G-5W-SMA
Operating Frequency DC-26 GHZ
Impedance ( Ohm ) 50
Application Indoor & Outdoor
Degree of Protection IP65
Handling Power (Watt, max) 5W
Interface SMA Male - SMA Female
Operating Temperature ( ℃ ) -40 ~ + 80
Attenuation(dB) 3,6 10 20 30,40 50 VSWR
DC~4 ±0.3 ±0.3 ±0.3 ±0.4 ±0.5 1.15
DC~8 ±0.4 ±0.4 ±0.4 ±0.5 ±0.5 1.2
DC~12.4 ±0.5 ±0.5 ±0.5 ±0.5 ±0.5 1.25
DC~18 -0.5/+0.8 ±1 ±1 ±1 ±1 1.3
DC~26.5 ±1 ±1 -0.5/+1.5 -0.5/+1.5 -0.5/+1.5 1.35
Dimension (mm), include connector) Φ15.7*33.7mm(3-30dB) Φ16.5*37mm(40-50dB)
Net Weight (g)
Packing Dimensions (mm,L×W×H)
Packing Carton Size (mm,L×W×H)
ROHS Compliance Yes



ISO9000 Outdoor 5W 50dB RF Attenuator DC 26GHz 0ISO9000 Outdoor 5W 50dB RF Attenuator DC 26GHz 1
