Indoor 40dB Male Adjustable RF Attenuator DC 26GHz 10W

Name: Indoor 40dB Male Adjustable RF Attenuator DC 26GHz 10W
Brand: HeFei Vinncom Electronic Technology Co.,Ltd.
SKU: VN-AT-26G-10W-SMA
Price: 6.80 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: RoHS ISO9000

Model Number: VN-AT-26G-10W-SMA

Payment & Shipping Terms

Minimum Order Quantity: 5 pcs

Price: negotiation

Packaging Details: box/carton

Delivery Time: depends on quantity

Payment Terms: T/T, L/C, D/A, D/P

Supply Ability: 300pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      10W Adjustable RF Attenuator, Male Adjustable RF Attenuator, 40dB variable attenuators


Operating Frequency:	DC-26 GHZ	Impedance ( Ohm ):	50
Application:	Indoor & Outdoor	Degree Of Protection:	IP65
Handling Power (Watt, Max):	10W	Interface:	SMA Male - SMA Female

Operating Frequency:	DC-26 GHZ
Impedance ( Ohm ):	50
Application:	Indoor & Outdoor
Degree Of Protection:	IP65
Handling Power (Watt, Max):	10W
Interface:	SMA Male - SMA Female

Description

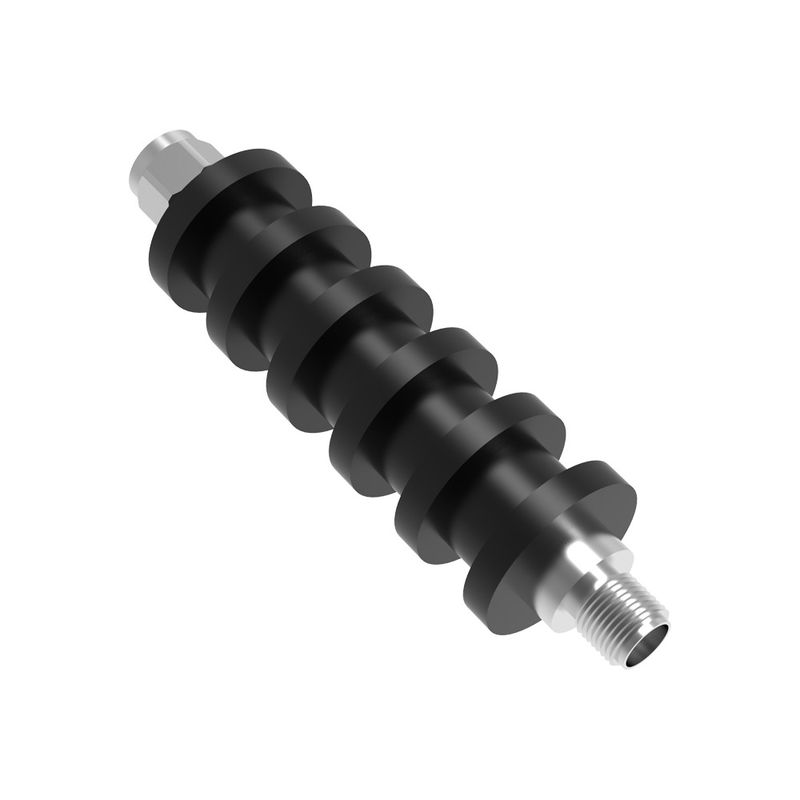

Indoor 40dB Male Adjustable RF Attenuator DC 26GHz 10W

DC-26GHz 10W SMA Male-SMA Female 3-40dB Attenuator

High attenuation accuracy
High indicator stability
Wide working frequency range

Part Number	VN-AT-26G-10W-SMA
Operating Frequency	DC-26 GHZ
Impedance ( Ohm )	50
Application	Indoor & Outdoor
Degree of Protection	IP65
Handling Power (Watt, max)	10W
Interface	SMA Male - SMA Female
Operating Temperature ( ℃ )	-40 ~ + 80
Attenuation(dB)	3,6	10	20	30,40	VSWR
DC~4	±0.4	±0.4	±0.4	±0.4	1.15
DC~8	±0.4	±0.5	±0.5	±0.5	1.2
DC~12.4	±0.6	±0.6	±0.6	±0.6	1.25
DC~18	±0.8	±1	±1	±1	1.3
DC~26.5	-0.5/+1.0	-0.5/+1.5	-0.5/+1.2	±1.2	1.35
Dimension (mm), include connector)	Φ16.5*46.5mm
Net Weight (g)	/
Packing Dimensions (mm,L×W×H)	/
Packing Carton Size (mm,L×W×H)	/
ROHS Compliance	Yes
