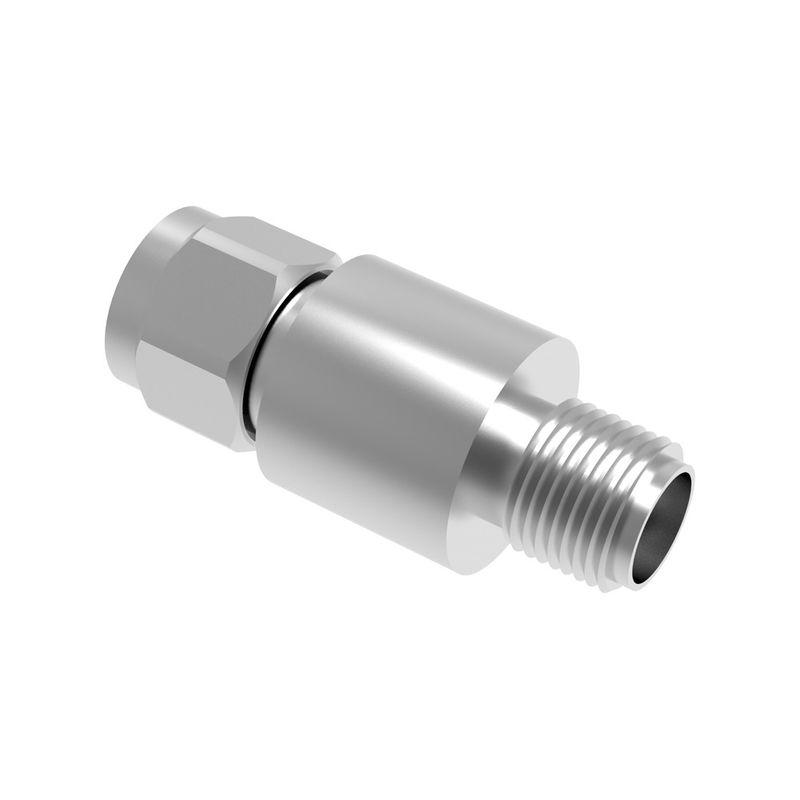

50dB 50 Ohm High Power Adjustable RF Attenuator 2W
  • name
  • name
  • name
  • name

50dB 50 Ohm High Power Adjustable RF Attenuator 2W

MOQ: 5 pcs
Price: negotiation
Standard Packaging: box/carton
Delivery Period: depends on your quantity
Payment Method: T/T, D/P, D/A, L/C
Supply Capacity: 300pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
RoHS ISO9000
Model Number
VN-AT-40G-2W-2.92mm
Operating Frequency:
DC-40 GHZ
Impedance ( Ohm ):
50
Application:
Indoor & Outdoor
Degree Of Protection:
IP65
Handling Power (Watt, Max):
2
Interface:
2.92mm Male - 2.92mm Female
Highlight:

50dB Adjustable RF Attenuator

,

50 Ohm Adjustable RF Attenuator

,

2W 50 ohm attenuator

Product Description

    DC-40GHz 2W 2.92mm Male-2.92mm Female 50dB Attenuator



  • Wide band
  • Good VSWR
  • Attenuation Range Wide



Part Number VN-AT-40G-2W-2.92mm
Operating Frequency DC-40 GHZ
Impedance ( Ohm ) 50
Application Indoor & Outdoor
Degree of Protection IP65
Handling Power (Watt, max)

2
Interface 2.92mm Male - 2.92mm Female
Operating Temperature ( ℃ ) -40 ~ + 80
Attenuation(dB) 1~9 10~19 20~30 40 50 VSWR
DC~32 ±0.8 ±0.8 ±1.0 ±1.5 - 1.30
DC~40 ±1.0 ±1.0 -1.0/+1.5 -1.0/+2.0 -1.0/+2.0 1.35, 1.40@40dB, 50dB
Dimension (mm), include connector) Φ8*L
Net Weight (g)
Packing Dimensions (mm,L×W×H)
Packing Carton Size (mm,L×W×H)
ROHS Compliance Yes



                                                                                                     50dB 50 Ohm High Power Adjustable RF Attenuator 2W 050dB 50 Ohm High Power Adjustable RF Attenuator 2W 1


1~30dB - Outline A

40dB - Outline B

50dB - Outline C



FAQ

Q1. What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment (Conventional products).

Q2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF

Q3. How about your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 7-10 days if the goods are not in stock, it is according to quantity.

Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q5. What is your sample policy?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q7: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
