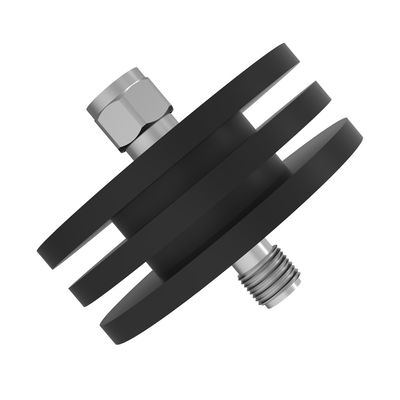

DC 40GHz 5W Fixed Microwave Attenuator Low Standing Wave

Name: DC 40GHz 5W Fixed Microwave Attenuator Low Standing Wave
Brand: HeFei Vinncom Electronic Technology Co.,Ltd.
SKU: VN-AT-40G-5W-2.92mm
Price: 6.80 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: RoHS ISO9000

Model Number: VN-AT-40G-5W-2.92mm

Payment & Shipping Terms

Minimum Order Quantity: 5 pcs

Price: negotiation

Packaging Details: box/carton

Delivery Time: depends on your quantity

Payment Terms: T/T, L/C, D/A, D/P

Supply Ability: 300pca per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      DC 40GHz microwave attenuator, Fixed microwave attenuator, 5W fixed attenuator in microwave


Operating Frequency:	DC-40 GHZ	Impedance ( Ohm ):	50
Application:	Indoor & Outdoor	Degree Of Protection:	IP65
Handling Power (Watt, Max):	5	Interface:	2.92mm Male - 2.92mm Female

Operating Frequency:	DC-40 GHZ
Impedance ( Ohm ):	50
Application:	Indoor & Outdoor
Degree Of Protection:	IP65
Handling Power (Watt, Max):	5
Interface:	2.92mm Male - 2.92mm Female

Description

DC 40GHz 5W Fixed Microwave Attenuator Low Standing Wave

DC-40GHz 5W 2.92mm Male-2.92mm Female 1-40dB Attenuator

Wide band
Good VSWR
Attenuation Range Wide

Part Number	VN-AT-40G-5W-2.92mm
Operating Frequency	DC-40 GHZ
Impedance ( Ohm )	50
Application	Indoor & Outdoor
Degree of Protection	IP65
Handling Power (Watt, max)	5
Interface	2.92mm Male - 2.92mm Female
Operating Temperature ( ℃ )	-55~+85℃
Attenuation(dB)	1~10	20	30	40	VSWR
DC~32	±1.0	±1.0	±1.4	±1.5	1.30
DC~40	±1.0	±1.5	±1.5	-1.0/+2.0	1.35, 1.40@40dB, 50dB
Dimension (mm), include connector)	Φ3831.4(1~20dB) Φ3833(1~30dB) Φ38* 47.6 (40dB)
Net Weight (g)	/
Packing Dimensions (mm,L×W×H)	/
Packing Carton Size (mm,L×W×H)	/
ROHS Compliance	Yes
