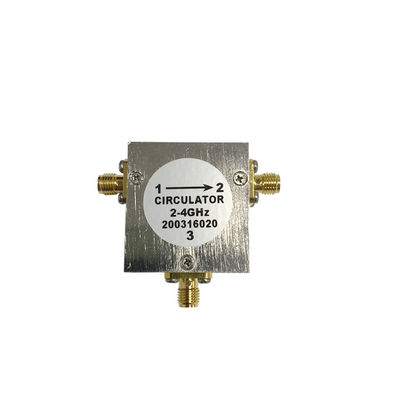

4GHZ SMF Female Mini RF Circulator Isolator Transmit Electromagnetic Wave

Name: 4GHZ SMF Female Mini RF Circulator Isolator Transmit Electromagnetic Wave
Brand: Vinncom
SKU: VN-CI-2-4GHZ
Rating: 4.8 (171 reviews)

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: RoHS/ISO9000

Model Number: VN-CI-2-4GHZ

Payment & Shipping Terms

Minimum Order Quantity: 5pcs

Price: negotiation

Packaging Details: foam+box

Delivery Time: 2-4weeks

Payment Terms: T/T, Western Union

Supply Ability: 50pca per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    4GHZ RF Circulator Isolator, SMF RF Circulator Isolator, SMF Female rf line isolator


Operating Frequency (GHz ):	2-4	Direction:	CW
Operating Temperature( ℃ ):	0~+70	Insertion Loss(dB Max):	0.50 (room Temp:+25°C±°C)(over Temp:0°C~+70°C)
Isolation(dB Min):	18 (room Temp:+25°C±°C)(over Temp:0°C~+70°C)	VSVR(Max):	≤1.35 (room Temp:+25°C±°C)(over Temp:0°C~+70°C)

Operating Frequency (GHz ):	2-4
Direction:	CW
Operating Temperature( ℃ ):	0~+70
Insertion Loss(dB Max):	0.50 (room Temp:+25°C±°C)(over Temp:0°C~+70°C)
Isolation(dB Min):	18 (room Temp:+25°C±°C)(over Temp:0°C~+70°C)
VSVR(Max):	≤1.35 (room Temp:+25°C±°C)(over Temp:0°C~+70°C)

Description

4GHZ SMF Female Mini RF Circulator Isolator Transmit Electromagnetic Wave

2-4GHZ SMF Female RF Coaxial Circulator

Less Insertion Loss
High isolation
Good VSWR

Part Number	VN-CI-2-4GHZ
Operating Frequency (GHz )	2-4
Direction	CW
Operating Temperature( ℃ )	0~+70
Insertion Loss(dB Max)	0.50 (room temp:+25°C±°C)(over temp:0°C~+70°C)
Isolation(dB Min)	18 (room temp:+25°C±°C)(over temp:0°C~+70°C)
VSVR(Max)	≤1.35 (room temp:+25°C±°C)(over temp:0°C~+70°C)
Connector	SMA F
Reverse Power(W)	100
Impedance( Ohm )	50

Circulator is a kind of device which can transmit electromagnetic wave in one-way ring.

It is used in modern radar and microwave multichannel communication system
