64-71GHz WR-12 WAVEGUIDE ISOLATOR VN-WGISO-6471-WR12
  • name

64-71GHz WR-12 WAVEGUIDE ISOLATOR VN-WGISO-6471-WR12

MOQ: 5pcs
Price: negotiation
Standard Packaging: foam+box
Delivery Period: 2-4weeks
Payment Method: T/T, Western Union
Supply Capacity: 50pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
RoHS/ISO9000
Model Number
VN-WGISO-6471-WR12
Operating Frequency (GHz ):
64-71
Operating Temperature( ℃ ):
-45 ~ + 80
Insertion Loss(dB Max):
≤0.8
Isolation(dB Min):
≥17
Return Loss(dB):
≥16
Highlight:

64-71GHz WR-12 waveguide isolator

,

RF circulator isolator with WR-12 flange

,

millimeter-wave isolator for 64-71GHz applications

Product Description

64-71GHz WR-12 WAVEGUIDE ISOLATOR



  • Low forward insertion loss (typically 0.3–0.8 dB)
  • Protection of expensive sources (magnetrons, amplifiers, oscillators)
  • Non‑reciprocal operation (one‑way transmission)

A WAVEGUIDE ISOLATOR is a two‑port non‑reciprocal ferrite device.
A WAVEGUIDE ISOLATOR allows microwave energy to pass with very low loss in the forward direction.
In the reverse direction, a WAVEGUIDE ISOLATOR provides very high attenuation (isolation).
A WAVEGUIDE ISOLATOR is essentially a WAVEGUIDE CIRCULATOR with one port permanently terminated internally by a WAVEGUIDE LOAD.
Therefore, a WAVEGUIDE ISOLATOR has only one useful transmission path: input to output.
A WAVEGUIDE ISOLATOR uses a magnetically biased ferrite element to create non‑reciprocal phase shift.
Because of this property, a WAVEGUIDE ISOLATOR behaves like a microwave diode — it conducts power one way and blocks it the other way.



                             VN-WGISO-6471-WR12.pdf

Part Number VN-WGISO-6471-WR12
Operating Frequency ( GHz ) 64-71
Insertion Loss(dB) ≤0.8
Isolation(dB) ≥17
Return Loss(dB) ≥16
Operating Temperature ( ℃ ) -45 ~ + 80
Interface WR12 with UG-383/U Anti-Cocking

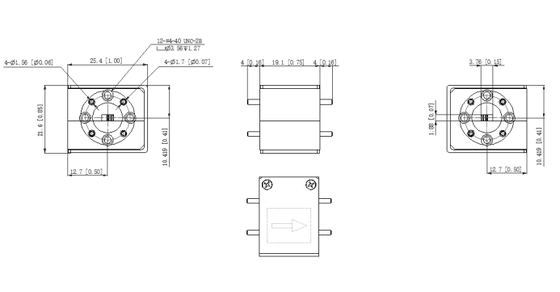

Dimension(mm) As below
Handling Power 3W/1W
ROHS Compliance Yes







64-71GHz WR-12 WAVEGUIDE ISOLATOR VN-WGISO-6471-WR12 0
