Name: 75-80GHz WR-12 WAVEGUIDE CIRCULATOR VN-WGCIR-7580-WR12
Brand: HeFei Vinncom Electronic Technology Co.,Ltd.
SKU: VN-WGCIR-7580-WR12
Price: 414.00 USD
Availability: InStock

MOQ:	5pcs
Price:	negotiation
Standard Packaging:	foam+box
Delivery Period:	2-4weeks
Payment Method:	T/T, Western Union
Supply Capacity:	50pcs per day

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Vinncom

Certification

RoHS/ISO9000

Model Number

VN-WGCIR-7580-WR12

Operating Frequency (GHz ):

75-80

Operating Temperature( ℃ ):

-45 ~ + 80

Insertion Loss(dB Max):

≤0.8

Isolation(dB Min):

≥18

Isolation(dB):

≥16

Highlight:

75-80GHz WR-12 waveguide circulator

WR-12 RF circulator isolator

waveguide circulator with high-frequency

Product Description

75-80GHz WR-12 WAVEGUIDE CIRCULATOR

Broadband operation (multi‑octave possible)
High transmitter‑receiver isolation
Reduces system complexity compared to duplexers

Port assignment –
A WAVEGUIDE CIRCULATOR must have its three ports clearly identified: input, output, and isolated port.
Signal input connection –
Connect the transmitter or signal source to port 1 of the WAVEGUIDE CIRCULATOR.
Load connection –
Connect the antenna or main transmission path to port 2 of the WAVEGUIDE CIRCULATOR.
Termination of isolated port –
Always terminate the isolated port (port 3) of a WAVEGUIDE CIRCULATOR with a WAVEGUIDE LOAD to absorb reflected power.
Flange matching –
A WAVEGUIDE CIRCULATOR requires the same flange type (UG, CPR, cover, or choke) as the rest of the waveguide system.
Magnetic bias field –
A WAVEGUIDE CIRCULATOR typically has an internal permanent magnet; no external bias is needed for normal operation.
Power handling check –
Before using a WAVEGUIDE CIRCULATOR, verify its average and peak power ratings against the system requirements.

VN-WGCIR-7580-WR12.pdf

Part Number	VN-WGCIR-7580-WR12
Operating Frequency ( GHz )	75-80
Insertion Loss(dB)	≤0.8
Isolation(dB)	≥18
Return Loss(dB)	≥16
Operating Temperature ( ℃ )	-45 ~ + 80
Interface	WR12 with UG-383/U Anti-Cocking

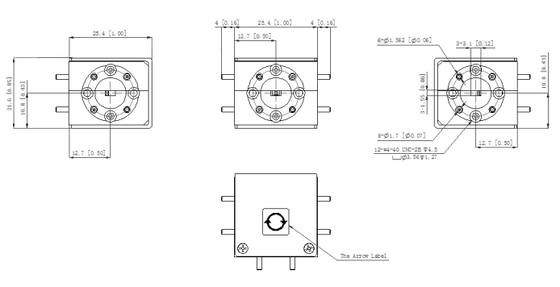

Dimension(mm)	As below
Handling Power	3W/1W
ROHS Compliance	Yes
