| MOQ: | 5pcs |
| Price: | negotiation |
| Standard Packaging: | foam+box |
| Delivery Period: | 2-4weeks |
| Payment Method: | T/T, Western Union |
| Supply Capacity: | 50pcs per day |
75-80GHz WR-12 WAVEGUIDE ISOLATOR
Identify the forward direction –
A WAVEGUIDE ISOLATOR is marked with an arrow or label indicating the allowed transmission direction.
Connect source to input port –
Connect the signal source (e.g., magnetron, amplifier, or oscillator) to the input port of the WAVEGUIDE ISOLATOR.
Connect load to output port –
Connect the antenna, transmission line, or measurement device to the output port of the WAVEGUIDE ISOLATOR.
**Never reverse a WAVEGUIDE ISOLATOR –
A WAVEGUIDE ISOLATOR will severely attenuate (typically >20 dB) if connected in reverse; it must be installed in the correct orientation.
Flange matching –
A WAVEGUIDE ISOLATOR requires the same flange type (UG, CPR, cover, or choke) as the adjacent waveguide components.
Power rating verification –
Before operating a WAVEGUIDE ISOLATOR, verify both its average power and peak power handling capabilities.
No external termination needed –
Unlike a circulator, a WAVEGUIDE ISOLATOR has its isolated port internally terminated, so no external WAVEGUIDE LOAD is required.
| Part Number | VN-WGISO-7580-WR12 |
| Operating Frequency ( GHz ) | 75-80 |
| Insertion Loss(dB) | ≤0.8 |
| Isolation(dB) | ≥18 |
| Return Loss(dB) | ≥16 |
| Operating Temperature ( ℃ ) | -45 ~ + 80 |
| Interface | WR12 with UG-383/U Anti-Cocking |

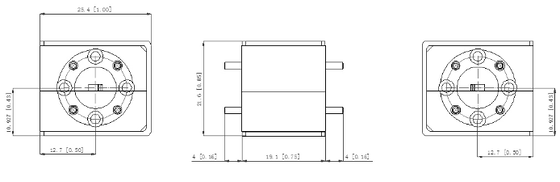

| Dimension(mm) | As below |
| Handling Power | 3W/1W |
| ROHS Compliance | Yes |
![]()
