64-71GHz WR-12 WAVEGUIDE CIRCULATOR VN-WGCIR-6471-WR12

MOQ:	5pcs
Price:	negotiation
Standard Packaging:	foam+box
Delivery Period:	2-4weeks
Payment Method:	T/T, Western Union
Supply Capacity:	50pcs per day

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Vinncom

Certification

RoHS/ISO9000

Model Number

VN-WGCIR-6471-WR12

Operating Frequency (GHz ):

64-71

Operating Temperature( ℃ ):

-45 ~ + 80

Insertion Loss(dB Max):

Isolation(dB Min):

Isolation(dB):

Highlight:

64-71GHz WR-12 waveguide circulator

WR-12 RF circulator isolator

waveguide circulator with warranty

Product Description

64-71GHz WR-12 WAVEGUIDE CIRCULATOR

Compact and rugged waveguide construction
Protection of sensitive sources from reflected power
High power handling capability

A WAVEGUIDE CIRCULATOR is a non-reciprocal, three‑port (or four‑port) ferrite device.
A WAVEGUIDE CIRCULATOR uses a magnetically biased ferrite element to create non‑reciprocal phase shift.
When a signal enters port 1 of a WAVEGUIDE CIRCULATOR, it exits only from port 2, not port 3.
Similarly, a WAVEGUIDE CIRCULATOR directs a signal from port 2 to port 3, and from port 3 to port 1.
Therefore, a WAVEGUIDE CIRCULATOR provides unidirectional circulation of microwave energy.
Because of this property, a WAVEGUIDE CIRCULATOR isolates input ports from output ports while maintaining low insertion loss in the forward direction.

VN-WGCIR-6471-WR12.pdf

Part Number	VN-WGCIR-6471-WR12
Operating Frequency ( GHz )	64-71
Insertion Loss(dB)	≤0.8
Isolation(dB)	≥16
Return Loss(dB)	≥16
Operating Temperature ( ℃ )	-45 ~ + 80
Interface	WR12 with UG-383/U Anti-Cocking

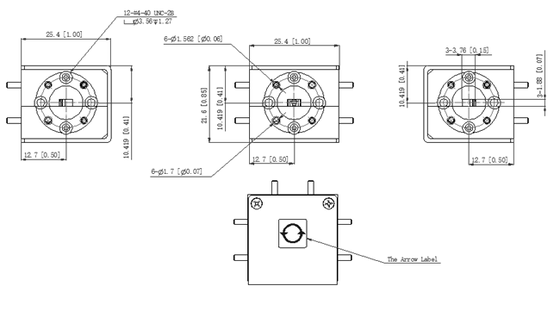

Dimension(mm)	As below
Handling Power	3W/3W
ROHS Compliance	Yes

Tags:

Hot Products

MOQ:	5pcs
Price:	negotiation
Standard Packaging:	foam+box
Delivery Period:	2-4weeks
Payment Method:	T/T, Western Union
Supply Capacity:	50pcs per day

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Vinncom

Certification

RoHS/ISO9000

Model Number

VN-WGCIR-6471-WR12

Operating Frequency (GHz ):

64-71

Operating Temperature( ℃ ):

-45 ~ + 80

Insertion Loss(dB Max):

≤0.8

Isolation(dB Min):

≥16

Isolation(dB):

≥16

Minimum Order Quantity:

5pcs

Price:

negotiation

Packaging Details:

foam+box

Delivery Time:

2-4weeks

Payment Terms:

T/T, Western Union

Supply Ability:

50pcs per day

Highlight

64-71GHz WR-12 waveguide circulator

WR-12 RF circulator isolator

waveguide circulator with warranty

Product Description

64-71GHz WR-12 WAVEGUIDE CIRCULATOR

Compact and rugged waveguide construction
Protection of sensitive sources from reflected power
High power handling capability

VN-WGCIR-6471-WR12.pdf

Part Number	VN-WGCIR-6471-WR12
Operating Frequency ( GHz )	64-71
Insertion Loss(dB)	≤0.8
Isolation(dB)	≥16
Return Loss(dB)	≥16
Operating Temperature ( ℃ )	-45 ~ + 80
Interface	WR12 with UG-383/U Anti-Cocking
Dimension(mm)	As below
Handling Power	3W/3W
ROHS Compliance	Yes
