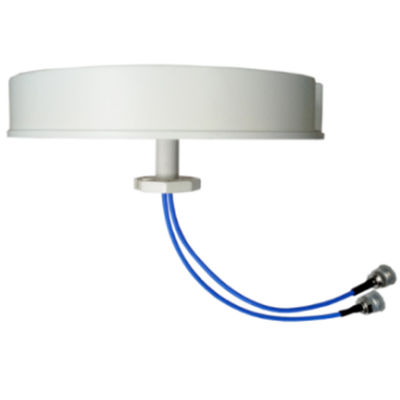

Name: 2T2R Mimo 698-3800MHz Slim Ommi Antenna
Brand: HeFei Vinncom Electronic Technology Co.,Ltd.
SKU: VN-ANT-2MIMO-0738-ON-150
Price: 414.00 USD
Availability: InStock

MOQ:	5pcs
Price:	negotiation
Standard Packaging:	foam+box
Delivery Period:	depends on your quantity
Payment Method:	L/C, D/A, D/P, T/T
Supply Capacity:	50pcs per day

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Vinncom

Certification

RoHS/ISO9000

Model Number

VN-ANT-2MIMO-0738-ON-150

Operating Frequency ( MHz ):

698-3800

Horizontal Beam Width:

360

VSWR:

≤1.8

Intermodulation IM3:

≤-140 Or -150(2X20W)

Impedance:

Power Handling:

Connector Type:

N-Female

Dimensions:

Ø210x38

Operating Temperature Range:

-40～+55

Highlight:

Slim Ommi Mimo Antenna

2T2R Mimo Antenna

2T2R Slim Ommi Antenna

Product Description

2T2R Mimo 698-3800MHz Slim Ommi Antenna

Wide Frequency Band 698-3800MHz
IM3 <-150dBc @ 2x20 W
N-female / 4.3-10-Female

VN-ANT-2MINO-0738-ON-150.pdf

Electrical Specifications
Frequency range			MHz		698-960			1710-2700		3300-3800
Polarization					Horizontalx2
Gain			dBi		2.5			5		5.5
Horizontal beam width			º		360
Vertical beam width			º		90			55		40
VSWR					≤1.8
Intermodulation IM3			dBc		≤-140 or -150(2X20W)
Isolation			dB		≥17			≥20		≥20
Impedance			Ω		50
Power Handling			w		50
Lightning Protection					DC Ground
Mechanical Specifications							Installation Diagram
Connector type				N-Female
Connector Position				bottom
Dimensions		mm		Ø210x38
Antenna weight		kg		0.55
Radome material and Color				ABS, White
Mounting kit				Ceiling
Operating temperature range		°C		-40～+55
Operational Humidity		%		< 95
900MHz	1710MHz								3500MHz
Horizontal Pattern						Vertical Pattern

2T2R Mimo 698-3800MHz Slim Ommi Antenna 1
