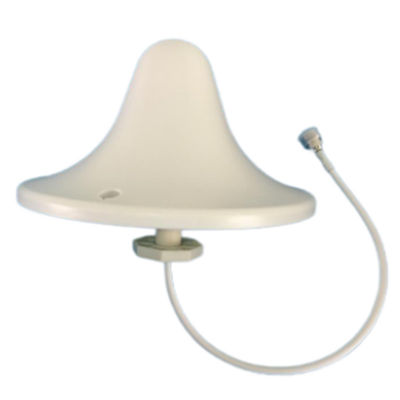

Indoor Ommi Directional Antenna 698-3800MHz
  • name

Indoor Ommi Directional Antenna 698-3800MHz

MOQ: 5pcs
Price: negotiation
Standard Packaging: foam+box
Delivery Period: depends on your quantity
Payment Method: L/C, D/A, D/P, T/T
Supply Capacity: 50pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
RoHS/ISO9000
Model Number
VN-ANT-ODA-0738-ON-150
Operating Frequency ( MHz ):
698-3800
Horizontal Beam Width:
360
VSWR:
≤1.5
Intermodulation IM3:
≤-140 Or -150(2 X2 W)
Impedance:
50
Power Handling:
50
Connector Type:
N-Female
Dimensions:
Ø190x100
Operating Temperature Range:
-40～+60
Highlight:

Indoor ommi directional antenna

,

3800MHz Indoor ommi directional antenna

Product Description

Indoor Ommi Directional Antenna 698-3800MHz



  • Wide Frequency Band 698-3800MHz
  • IM3 <-150dBc @ 2x2 W
  • Slim Mimo Omni



         VN-ANT-ODA-0738-ON-150.pdf

Electrical Specifications
Frequency range MHz 698-960 1710-2700 3300-3800
Polarization   Vertical
Gain dBi 2.0±0.5 4±0.5 5±1
Horizontal beam width º 360
Vertical beam width º 100 55 40
VSWR   ≤1.8 ≤1.5 ≤1.8
Intermodulation IM3 dBc <-140 or -150 (2 x2 W)
Impedance Ω 50
Power Handling w 50
Lightning Protection   DC Ground
Mechanical Specifications Installation Diagram
Connector type   N-Female

Indoor Ommi Directional Antenna 698-3800MHz 0


Connector Position   bottom
Dimensions mm Ø190x100
Antenna weight kg 0.32
Radome material and Color   White
Mounting kit   Mounts to ceiling
Operating temperature range °C -40～+60
Operational Humidity % < 95

900MHz 1710MHz 3500MHz
Horizontal Pattern Vertical Pattern







                                                                                                                       Indoor Ommi Directional Antenna 698-3800MHz 1Indoor Ommi Directional Antenna 698-3800MHz 2Indoor Ommi Directional Antenna 698-3800MHz 3Indoor Ommi Directional Antenna 698-3800MHz 4Indoor Ommi Directional Antenna 698-3800MHz 5Indoor Ommi Directional Antenna 698-3800MHz 6
