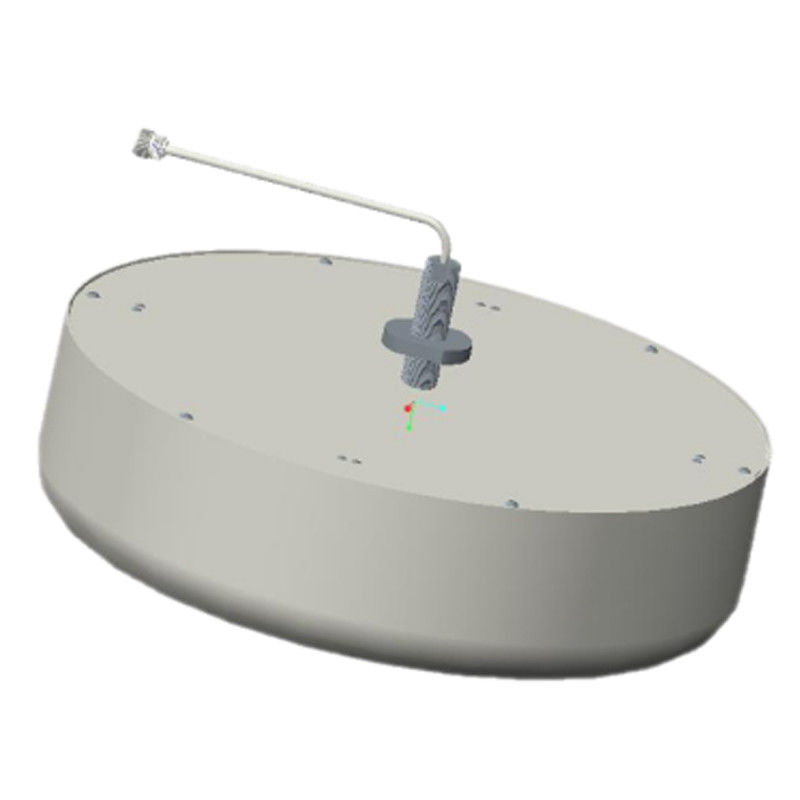

Indoor ommi directional antenna 350-4200MHz

Indoor ommi directional antenna 350-4200MHz

MOQ: 5pcs
Price: negotiation
Standard Packaging: foam+box
Delivery Period: depends on your quantity
Payment Method: L/C, D/A, D/P, T/T
Supply Capacity: 50pcs per day
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
RoHS/ISO9000
Model Number
VN-ANT-ODA-3542-ON-150
Operating Frequency ( MHz ):
350-4200
Horizontal Beam Width:
360
VSWR:
≤1.5
Intermodulation IM3:
≤-140 Or -150(2 X20 W)
Impedance:
50
Power Handling:
50
Connector Type:
N-Female
Dimensions:
Ø380x125
Operating Temperature Range:
-40~+65
Highlight:

350-4200MHz Indoor ommi directional antenna

,

Indoor ommi directional antenna

Product Description

​Indoor ommi directional antenna 350-4200MHz



  • Wide Frequency Band 350-4200MHz
  • IM3 <-150dBc @ 2x2 W
  • N-female / 4.3-10-Female



 VN-ANT-ODA-3542-ON-150.pdf

Electrical Specifications
Frequency range MHz 350-366 806-866 880-960 1710-2700 3300-4200
Polarization   Vertical
Gain dBi 2.0±0.5 4.0±0.5 5.0±1.0 6.0±1.0
Horizontal beam width º 360
Vertical beam width º 120 90 85 55 40
VSWR   ≤1.5 ≤2.0
Intermodulation IM3 dBc ≤-140 or -150 (2X20W)
Impedance Ω 50
Power Handling w 50
Lightning Protection   DC Ground
Mechanical Specifications Installation Diagram
Connector type   N-Female Indoor ommi directional antenna 350-4200MHz 0
Connector Position   bottom
Dimensions mm Ø380x125
Antenna weight kg 1.25
Radiating element materal   Al
Radome material and Color   ABS, White
Mounting kit   Mounts to ceiling
Operating temperature range °C -40~+65
Operational Humidity % < 95

900MHz 1710MHz 3500MHz
Horizontal Pattern Vertical Pattern







                                                                                                                          Indoor ommi directional antenna 350-4200MHz 1Indoor ommi directional antenna 350-4200MHz 2Indoor ommi directional antenna 350-4200MHz 3Indoor ommi directional antenna 350-4200MHz 4Indoor ommi directional antenna 350-4200MHz 5Indoor ommi directional antenna 350-4200MHz 6
