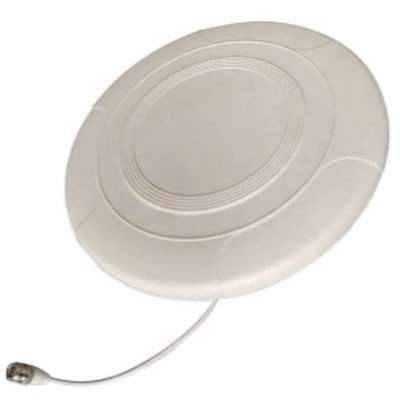

Indoor ommi directional antenna 350-6000MHz
  • name

Indoor ommi directional antenna 350-6000MHz

MOQ: 5pcs
Price: negotiation
Standard Packaging: foam+box
Delivery Period: depends on your quantity
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 50pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
RoHS/ISO9000
Model Number
VN-ANT-ODA-3560-ON-150
Operating Frequency ( MHz ):
350-6000
Horizontal Beam Width:
360
VSWR:
≤1.5
Intermodulation IM3:
≤-140 Or -150(2 X20 W)
Impedance:
50
Power Handling:
50
Connector Type:
N-Female
Dimensions:
Ø380x25
Operating Temperature Range:
-40～+65
Highlight:

350-6000MHz Indoor ommi directional antenna

,

Indoor ommi directional antenna

Product Description

Indoor ommi directional antenna 350-6000MHz



  • Wide Frequency Band 350-6000MHz
  • IM3 <-150dBc @ 2x2 W
  • Slim Mimo Omni



VN-ANT-ODA-3560-ON-150.pdf

Electrical Specifications
Frequency range MHz 350-520 617-698 806-960 1710-2700 3300-4000 5000-6000
Polarization   Horizontal
Gain dBi 1.5±0.5 2.0±0.5 2.5±0.5 4.0±0.5 5.0±1.0 6.0±1.0
Horizontal beam width º 360
Vertical beam width º 120 85 55 40
VSWR   ≤2.5 ≤2.0 ≤1.5 ≤1.5 ≤1.8 ≤2.5
Intermodulation IM3 dBc ≤-140 or -150 (2X20W)
Impedance Ω 50
Power Handling w 50
Lightning Protection   DC Ground
Mechanical Specifications Installation Diagram
Connector type   N-Female Indoor ommi directional antenna 350-6000MHz 0
Connector Position   bottom
Dimensions mm Φ320x25
Antenna weight kg 0.85
Radiating element materal   Al
Radome material and Color   ABS, White
Mounting kit   Mounts to ceiling
Operating temperature range °C -40～+65
Operational Humidity % < 95

900MHz 1710MHz 3500MHz
Horizontal Pattern Vertical Pattern









                                                                                                                    Indoor ommi directional antenna 350-6000MHz 1Indoor ommi directional antenna 350-6000MHz 2Indoor ommi directional antenna 350-6000MHz 3Indoor ommi directional antenna 350-6000MHz 4Indoor ommi directional antenna 350-6000MHz 5Indoor ommi directional antenna 350-6000MHz 6
