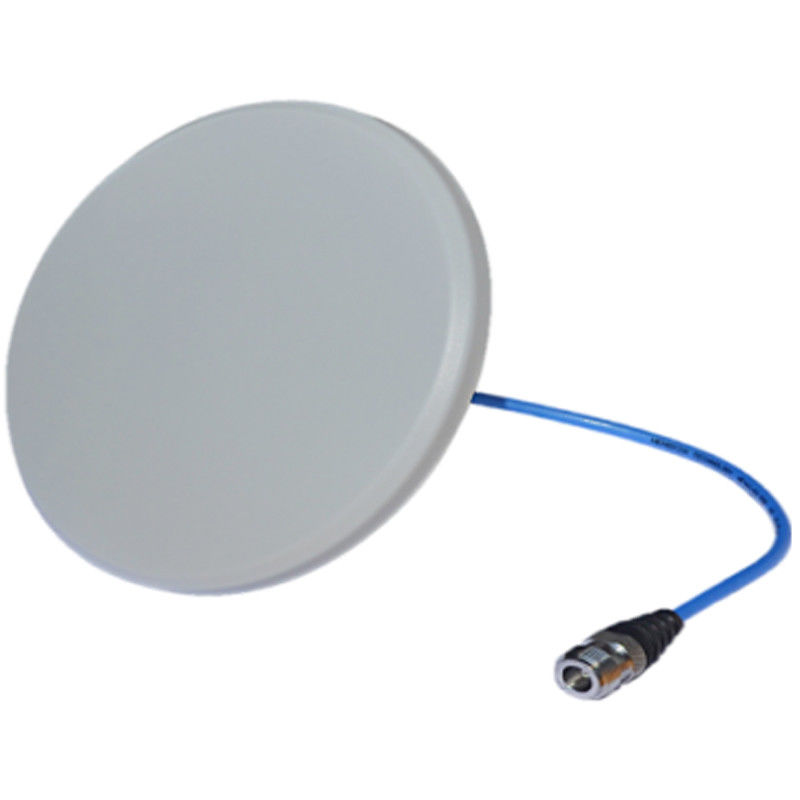

Name: Indoor Ommi Directional Antenna 698-3800MHz
Brand: HeFei Vinncom Electronic Technology Co.,Ltd.
SKU: VN-ANT-ODSA-0738-ON-150
Price: 414.00 USD
Availability: InStock

MOQ:	5pcs
Price:	negotiation
Standard Packaging:	foam+box
Delivery Period:	depends on your quantity
Payment Method:	L/C, D/A, D/P, T/T,
Supply Capacity:	50pcs per day

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Vinncom

Certification

RoHS/ISO9000

Model Number

VN-ANT-ODSA-0738-ON-150

Operating Frequency ( MHz ):

698-3800

Horizontal Beam Width:

360

VSWR:

≤1.5

Intermodulation IM3:

≤-140 Or -150(2 X20 W)

Impedance:

Power Handling:

Connector Type:

N-Female

Dimensions:

Ø160x17

Operating Temperature Range:

-40～+60

Highlight:

Indoor ommi directional antenna

698-3800MHz Indoor ommi directional antenna

Product Description

Indoor Ommi Directional Antenna 698-3800MHz

Wide Frequency Band 698-3800MHz
IM3 <-150dBc @ 2x2 W
Slim Mimo Omni

VN-ANT-ODSA-0738-ON-150.pdf

Electrical Specifications
Frequency range			MHz		698-960		1710-2700		3300-3800
Polarization					Horizontal
Gain			dBi		2.0±0.5		5±0.5		5.5±1
Horizontal beam width			º		360
Vertical beam width			º		100		55		40
VSWR					≤1.5
Intermodulation IM3			dBc		<-140 or -150 (2 x20 W)
Impedance			Ω		50
Power Handling			w		50
Lightning Protection					DC Ground
Mechanical Specifications								Installation Diagram
Connector type				N-Female
Connector Position				bottom
Dimensions		mm		Ø160x17
Antenna weight		kg		0.20
Radome material and Color				White
Mounting kit				Mounts to ceiling
Operating temperature range		°C		-40～+60
Operational Humidity		%		< 95

900MHz	1710MHz							3500MHz
Horizontal Pattern						Vertical Pattern

Indoor Ommi Directional Antenna 698-3800MHz 1
