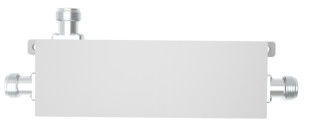

350-6000MHz N Female Directional Coupler with Wide Frequency Range
  • name

350-6000MHz N Female Directional Coupler with Wide Frequency Range

MOQ: 5 pcs
Price: negotiable
Payment Method: L/C, D/A, D/P, T/T
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
ISO 9000 ROHS
Model Number
VN-DC-03560-ONx-XXX
Color:
Grey
Connector Type:
N Female
Frequency Range:
350-6000MHz
Impedance:
50Ω
Name:
RF Antenna Combiner
Operating Temperature:
-40°C~+80°C
VSWR:
≤1.3
Highlight:

350-6000MHz Directional Coupler

,

N Female Directional Coupler

,

Wide Frequency N Female Directional Coupler

Product Description

350-6000MHz N Female Directional Coupler 350-6000MHz N Female Directional Coupler with Wide Frequency Range 0



  • Wide band
  • Good PIM up to -165@43dBm*2
  • Portable for installation



    VN-DC-03560-ONx-XXX.pdf

Part Number VN-DC-03560-ONx-XXX
Operating Frequency ( MHz ) 350-6000MHz
Impedance ( Ohm ) 50
VSWR ≤1.30
Coupling (dB) 5 ± 2 6 ± 2 7 ± 2 10 ±2 15 ± 2.3 20 ± 2.3
Insertion Loss (dB) ≤3.00 ≤2.2 ≤1.7 ≤1.1 ≤0.8 ≤0.3
Isolation (dB)@MHz ≥20 ≥21 ≥22 ≥23 ≥30 ≥35
IM3 (dBc) @ 2×43dBm@xxx -150/-160/-163/-165
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Female
Handling Power 200 (Watt, max)
Peak Power 1200 (Watt, max)
Dimension (mm) 156.9× 44× 31
Net Weight (g) 590± 5%
Packing Dimensions (mm) 240 × 80 × 35
Packing Carton Size(mm) 420 × 250 × 160
ROHS Compliance Yes





Tags:

directional coupler,

coaxial directional coupler,

transformer directional coupler
