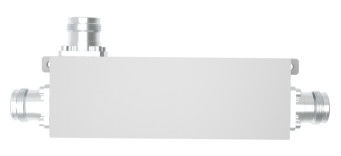

350-6000MHz 4.3-10 Female Directional Coupler

Name: 350-6000MHz 4.3-10 Female Directional Coupler
Brand: HeFei Vinncom Electronic Technology Co.,Ltd.
SKU: VN-DC-03560-OPx-XXX
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: ISO 9000 ROHS

Model Number: VN-DC-03560-OPx-XXX

Payment & Shipping Terms

Minimum Order Quantity: 5 pcs

Price: negotiable

Payment Terms: L/C, D/A, D/P, T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            350-6000MHz Directional Coupler, 4.3-10 Directional Coupler, Female Directional Coupler


Color:	Grey	Connector Type:	4.3-10 Female
Frequency Range:	350-6000MHz	Impedance:	50Ω
Name:	RF Antenna Combiner	Operating Temperature:	-40°C~+80°C
VSWR:	≤1.35

Color:	Grey
Connector Type:	4.3-10 Female
Frequency Range:	350-6000MHz
Impedance:	50Ω
Name:	RF Antenna Combiner
Operating Temperature:	-40°C~+80°C
VSWR:	≤1.35

Description

350-6000MHz 4.3-10 Female Directional Coupler

350-6000MHz 4.3-10 Female Directional Coupler

Wide band
Good PIM up to -160@43dBm*2
Good VSWR at all ports

VN-DC-03560-OPx-XXX.pdf

Part Number	VN-DC-03860-OPx-160
Operating Frequency ( MHz )	380-6000MHz
Impedance ( Ohm )	50
VSWR	1.35
Coupling (dB)	5 ± 1.8	6 ± 1.8	7 ± 1.8	10 ±2	15 ± 2.2	20 ± 2.2
Insertion Loss (dB)	≤3.00	≤2.20	≤1.7	≤1.1	≤0.8	≤0.3
Isolation (dB)@MHz	≥20	≥21	≥22	≥23	≥30	≥35
IM3 (dBc) @ 2×43dBm	-160
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	4.3-10 Female
Handling Power	200(Watt, max)
Peak Power	1200 (Watt, max)
Dimension (mm)	156.9X44X31
Net Weight (g)	675± 5%
Packing Dimensions (mm)	240 × 80 × 35
Packing Carton Size(mm)	420 × 250 × 160
ROHS Compliance	Yes
