DC-4000MHz Attenuator 4.3-10 Male To 4.3-10 Female
  • name
  • name
  • name
  • name
  • name
  • name

DC-4000MHz Attenuator 4.3-10 Male To 4.3-10 Female

MOQ: 5 pcs
Price: negotiable
Payment Method: L/C, D/A, D/P, T/T
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
ISO 9000 ROHS
Model Number
VN-AT-4G-10W-IPX
Operating Frequency ( MHz ):
DC-4000
VSWR:
≤1.25
Interface:
4.3-10 Male - 4.3-10 Female
Application:
Indoor
Highlight:

DC-4000MHz Attenuator

,

4000MHz Attenuator

Product Description

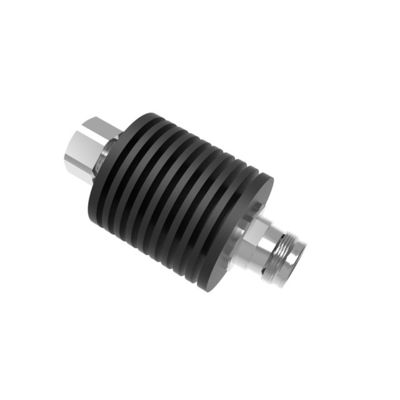

DC-4000MHz Attenuator 4.3-10 Male To 4.3-10 Female



  • Good VSWR at all ports
  • High attenuation accuracy
  • Wide band frequency



VN-AT-4G-10W-IPX.pdf

Part Number VN-AT-4G-10W-IPX
Operating Frequency ( MHz ) DC-4000
Impedance ( Ohm ) 50
VSWR ≤1.25
Attenuation(dB) 1 2 3 5 6 10 20 30
Attenuation Tolerance(dB) ±0.4 ±0.4 ±0.6 ±0.3 ±0.3 ±0.8 ±0.8 ±1.0
Interface 4.3-10 Male - 4.3-10 Female
Operating Temperature ( ℃ ) -40 ~ + 80
Application Indoor
Handling Power (Watt, max) 10
    Dimension (mm)(L*W*H, excl connector)     Φ47X50
Packing Dimensions (mm,L*W*H) 65X65X105
Packing Carton Size (mm,L*W*H) 350X350X225
ROHS Compliance Yes









DC-4000MHz Attenuator 4.3-10 Male To 4.3-10 Female 0DC-4000MHz Attenuator 4.3-10 Male To 4.3-10 Female 1



DC-4000MHz Attenuator 4.3-10 Male To 4.3-10 Female 2DC-4000MHz Attenuator 4.3-10 Male To 4.3-10 Female 3

Tags:

fixed rf attenuator,

fixed coaxial attenuator,

precision attenuator
