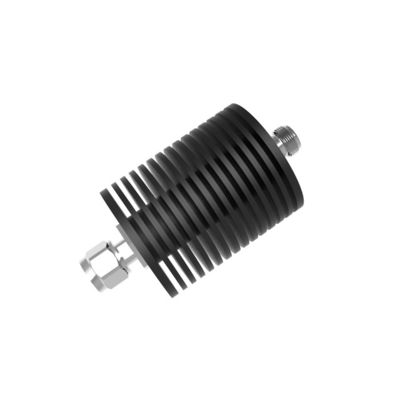

50W DC-4000MHz Attenuator N Male To N Female
50W DC-4000MHz Attenuator N Male To N Female
50W DC-4000MHz Attenuator N Male To N Female
50W DC-4000MHz Attenuator N Male To N Female
50W DC-4000MHz Attenuator N Male To N Female
50W DC-4000MHz Attenuator N Male To N Female
50W DC-4000MHz Attenuator N Male To N Female

50W DC-4000MHz Attenuator N Male To N Female

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: ISO 9000 ROHS

Model Number: VN-AT-4G-50W-INX

Payment & Shipping Terms

Minimum Order Quantity: 5 pcs

Price: negotiable

Payment Terms: L/C, D/A, D/P, T/T

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

N Male To N Female Attenuator

,

4000MHz RF Attenuator

Operating Frequency ( MHz ):
DC-4000
VSWR:
≤1.25
Interface:
N Male - N Female
Application:
Indoor
Operating Frequency ( MHz ):
DC-4000
VSWR:
≤1.25
Interface:
N Male - N Female
Application:
Indoor
Description
50W DC-4000MHz Attenuator N Male To N Female

DC-4000MHz Attenuator N Male To N Female



  • Good VSWR
  • Wide band
  • High indicator stability

 VN-AT-4G-50W-INX.pdf

Part Number VN-AT-4G-50W-INX
Operating Frequency ( MHz ) DC-4000
Impedance ( Ohm ) 50
VSWR ≤1.25
Attenuation(dB) 1 2 3 5 6 10 15
Attenuation Tolerance(dB) ±0.4 ±0.4 ±0.5 ±0.4 ±0.6 ±0.4 ±0.9
Interface N Male - N Female
Operating Temperature ( ℃ ) -40 ~ + 80
Application Indoor
Handling Power (Watt, max) 50
    Dimension (mm)(L*W*H, excl connector)     Φ60X75
Packing Dimensions (mm,L*W*H) 65X65X210
Packing Carton Size (mm,L*W*H) 350X350X220
ROHS Compliance Yes









50W DC-4000MHz Attenuator N Male To N Female 0
