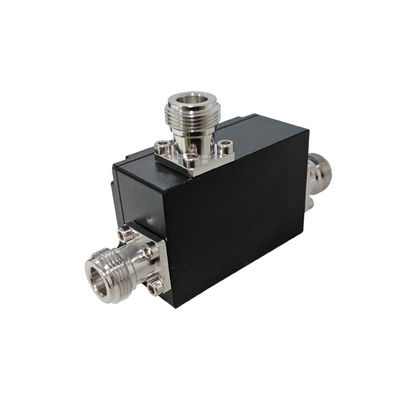

2000-4000MHz N Female Directional Coupler Frequency Range -40°C- 80°C
  • name
  • name
  • name

2000-4000MHz N Female Directional Coupler Frequency Range -40°C- 80°C

MOQ: 5 pcs
Price: negotiable
Payment Method: L/C, D/A, D/P, T/T
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
ISO 9000 ROHS
Model Number
VN-2040-ONx-150
Connector Type:
N Female
Frequency Range:
2000-4000MHz
Operating Temperature:
-40°C~+80°C
VSWR:
≤1.25
Highlight:

N Female Directional Coupler

,

2000-4000MHz Directional Coupler

Product Description

2000-4000MHz N Female Directional Coupler



  • Good returen loss
  • High isolation
  • Good VSWR



    VN-2040-ONx-150.pdf

Part Number VN-2040-ONx-150
Operating Frequency ( MHz ) 2000-4000MHz
Impedance ( Ohm ) 50
VSWR ≤1.25
Coupling (dB)@x 5 6 7 8 10 12 13 15 20 30
Tolerance ± 1.0 ± 1.0 ± 1.0 ± 1.0 ± 1.0 ± 1.2 ± 1.2 ± 1.2 ± 1.2 ± 1.2
Insertion Loss (dB) ≤2.2 ≤1.6 ≤1.2 ≤1.0 ≤0.7 ≤0.7 ≤0.6 ≤0.6 ≤0.5 ≤0.4
Isolation (dB) ≥24 ≥25 ≥26 ≥27 ≥29 ≥31 ≥32 ≥34 ≥39 ≥49
      IM3 (dBc @ 2×43dBm)@xxx       -150
Application Indoor/Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Female
Handling Power (Watt) max) 300
Peak Power 1200 (Watt, max)
Dimension (mm) 81.2×40×27
Net Weight (g) 235
ROHS Compliance Yes









2000-4000MHz N Female Directional Coupler Frequency Range -40°C- 80°C 0

Tags:

directional coupler,

coaxial directional coupler,

transformer directional coupler
