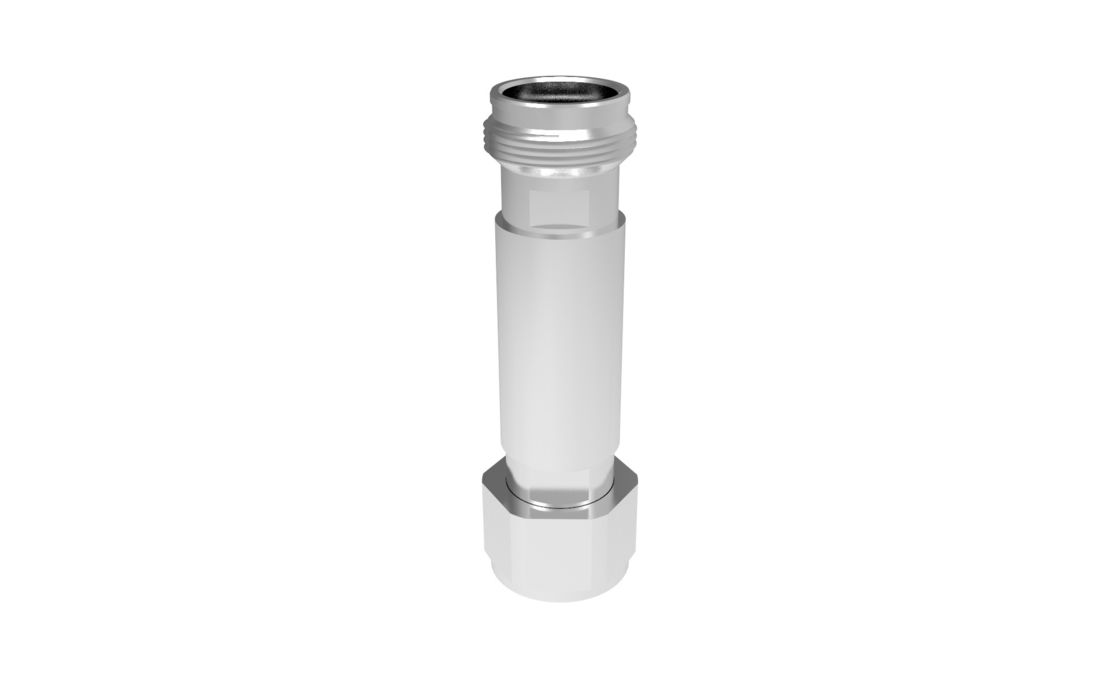

DC-4G 5W 4.3-10 Male-4.3-10 Female RF Attenuator 40~60dB

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: ISO 9000 ROHS

Model Number: VN-AT-4G-5W-OP40~60

Payment & Shipping Terms

Minimum Order Quantity: 5 pcs

Price: negotiable

Payment Terms: L/C, D/A, D/P, T/T

Get Best Price
Contact Now
Specifications
Highlight:

DC-4G RF Attenuator

,

RF Attenuator 60dB

Operating Frequency ( MHz ):
DC-4000
VSWR:
≤1.25
Interface:
4.3-10 Male - 4.3-10 Female
Application:
Indoor
Operating Frequency ( MHz ):
DC-4000
VSWR:
≤1.25
Interface:
4.3-10 Male - 4.3-10 Female
Application:
Indoor
Description
DC-4G 5W 4.3-10 Male-4.3-10 Female RF Attenuator 40~60dB

DC-4G 5W 4.3-10Male-4.3-10 Female 40~60dB



  • Good VSWR
  • High indicator stability
  • High attenuation accuracy



        VN-AT-4G-2~5W-OP40~60.pdf

Part Number VN-AT-4G-5W-OP40~60
Operating Frequency DC-4000
Impedance ( Ohm ) 50
VSWR ≤1.25@DC-3000
Application Indoor & Outdoor
Degree of Protection IP65
Handling Power (Watt) 5(max)
Interface 4.3-10 Male - 4.3-10 Female
Operating Temperature ( ℃ ) -40 ~ + 80
Attenuation(dB) 40 50 60
Attenuation Tolerance(dB) ±1.2 ±1.5 ±1.8
Dimension (mm) 90×Φ18(includes connectors)
Net Weight (g) 70
Packing Dimensions (mm,L×W×H) 110 × 30 ×30
Packing Carton Size (mm,L×W×H) 220 × 220 × 215
ROHS Compliance Yes







                                                                                                                                              DC-4G  5W 4.3-10 Male-4.3-10 Female RF Attenuator 40~60dB 0DC-4G  5W 4.3-10 Male-4.3-10 Female RF Attenuator 40~60dB 1
