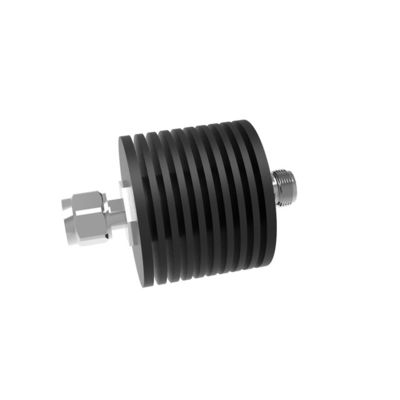

DC-4000MHz 30W Attenuator N Male To N Female
  • name
  • name
  • name

DC-4000MHz 30W Attenuator N Male To N Female

MOQ: 5 pcs
Price: negotiable
Payment Method: L/C, D/A, D/P, T/T
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
ISO 9000 ROHS
Model Number
VN-AT-4G-30W-INX
Operating Frequency ( MHz ):
DC-4000
VSWR:
≤1.25
Interface:
N Male - N Female
Application:
Indoor
Highlight:

N Male To N Female Attenuator

,

DC-4000MHz Attenuator

,

30W Attenuator

Product Description

DC-4000MHz 30W Attenuator N Male To N FemaleDC-4000MHz 30W Attenuator N Male To N Female 0



  • High attenuation accuracy
  • High indicator stability

  • Low standing wave

    ​

      VN-AT-4G-30W-INX.pdf

Part Number VN-AT-4G-30W-INX
Operating Frequency ( MHz ) DC-4000
Impedance ( Ohm ) 50
VSWR ≤1.25
Attenuation(dB) 1 2 3 5 6 10 15
Attenuation Tolerance(dB) ±0.4 ±0.4 ±0.5 ±0.5 ±0.6 ±0.8 ±0.9
Interface N Male - N Female
Operating Temperature ( ℃ ) -40 ~ + 80
Application Indoor
Handling Power (Watt, max) 30
Dimension (mm)(L*W*H, excl connector) Φ60X50
Packing Dimensions (mm,L*W*H) 65X65X105
Packing Carton Size (mm,L*W*H) 350X350X225
ROHS Compliance Yes







DC-4000MHz 30W Attenuator N Male To N Female 1DC-4000MHz 30W Attenuator N Male To N Female 2

Tags:

fixed rf attenuator,

fixed coaxial attenuator,

precision attenuator
