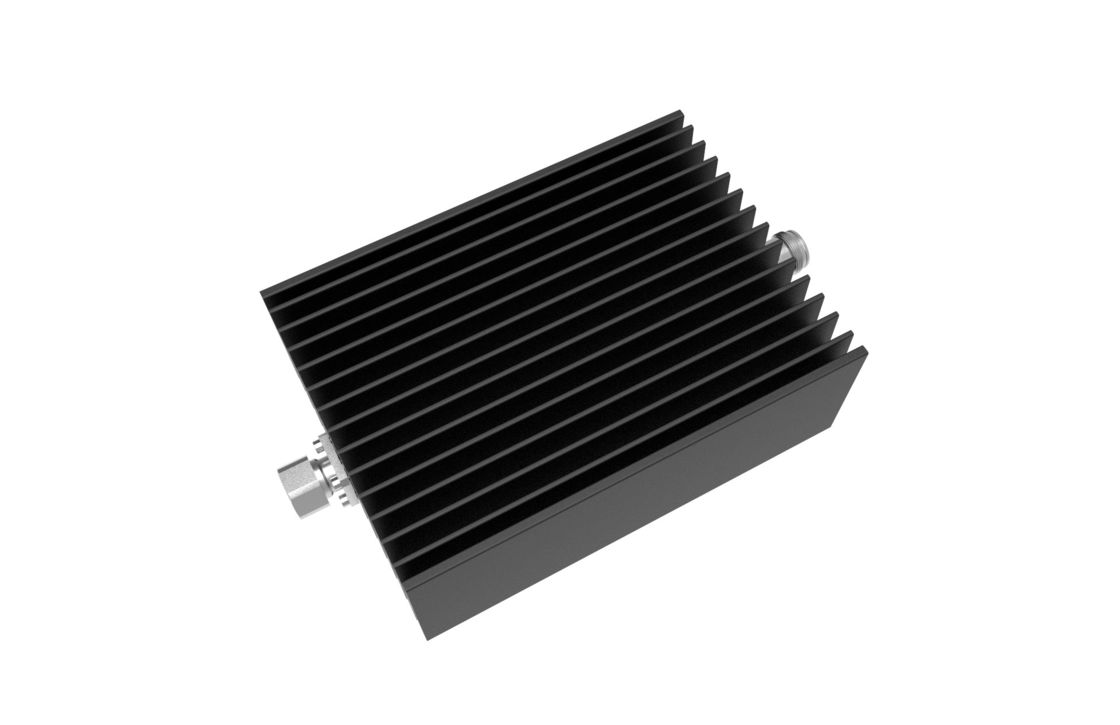

DC-4000MHz 200W Attenuator 4.3-10 Male To 4.3-10 Female

Name: DC-4000MHz 200W Attenuator 4.3-10 Male To 4.3-10 Female
Brand: HeFei Vinncom Electronic Technology Co.,Ltd.
SKU: VN-AT-4G-200W-IPX
Price: 6.80 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: ISO 9000 ROHS

Model Number: VN-AT-4G-200W-IPX

Payment & Shipping Terms

Minimum Order Quantity: 5 pcs

Price: negotiable

Payment Terms: L/C, D/A, D/P, T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                              DC-4000MHz Attenuator, Indoor Attenuator, 200W Attenuator


Operating Frequency ( MHz ):	DC-4000	VSWR:	≤1.30
Interface:	4.3-10 Male - 4.3-10 Female	Application:	Indoor

Operating Frequency ( MHz ):	DC-4000
VSWR:	≤1.30
Interface:	4.3-10 Male - 4.3-10 Female
Application:	Indoor

Description

DC-4000MHz 200W Attenuator 4.3-10 Male To 4.3-10 Female

DC-4000MHz 200W Attenuator 4.3-10 Male To 4.3-10 Female

High attenuation accuracy
Wide working frequency range
High indicator stability

RF attenuators model number VN-AT-4G-200W-IPX-R.RF attenuators has been

manufactured with the highest quality materials to ensure long-lasting use and durability.

These RF attenuators can be fixed, switched,surface mounted or even continuously variable.

VN-AT-4G-200W-IPX-S.pdf

Part Number	VN-AT-4G-200W-IPX-R
Operating Frequency ( MHz )	DC-4000
Impedance ( Ohm )	50
VSWR	≤1.30
Attenuation(dB)	40
Attenuation Tolerance(dB)	±3.0
Interface	4.3-10 Male - 4.3-10 Female
Operating Temperature ( ℃ )	-40 ~ + 80
Application	Indoor
Handling Power (Watt, max)	200
Dimension (mm)(LWH, excl connector)	200X142X70
ROHS Compliance	Yes
