DC-6000MHz 30W Attenuator N Male To N Female Compact Design
  • name
  • name
  • name

DC-6000MHz 30W Attenuator N Male To N Female Compact Design

MOQ: 5 pcs
Price: negotiable
Payment Method: L/C, D/A, D/P, T/T
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
ISO 9000 ROHS
Model Number
VN-AT-6G-30W-INX
Operating Frequency ( MHz ):
DC-6000
VSWR:
≤1.30
Interface:
N Male - N Female
Application:
Indoor
Highlight:

N Male To N Female Attenuator

,

30W Attenuator

,

DC-6000MHz Attenuator

Product Description

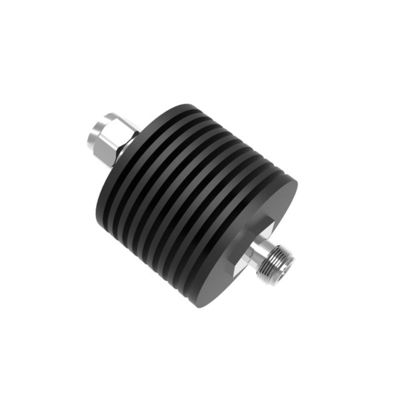

DC-6000MHz 30W Attenuator N Male To N FemaleDC-6000MHz 30W Attenuator N Male To N Female Compact Design 0



  • High attenuation accuracy

  • High indicator stability

  • Low standing wave

    ​

      VN-AT-6G-30W-INX.pdf

Part Number VN-AT-6G-30W-INX
Operating Frequency ( MHz ) DC-6000
Impedance ( Ohm ) 50
VSWR ≤1.30
Attenuation(dB) 10 20 30
Attenuation Tolerance(dB) ±0.7 ±0.8 ±1.5
Interface N Male - N Female
Operating Temperature ( ℃ ) -40 ~ + 80
Application Indoor
Handling Power (Watt, max) 30
Dimension (mm)(L*W*H, excl connector) Φ60X50
Packing Dimensions (mm,L*W*H) 65X65X105
Packing Carton Size (mm,L*W*H) 350X350X225
ROHS Compliance Yes







                                                                                                                                   DC-6000MHz 30W Attenuator N Male To N Female Compact Design 1DC-6000MHz 30W Attenuator N Male To N Female Compact Design 2

Tags:

fixed rf attenuator,

fixed coaxial attenuator,

precision attenuator
