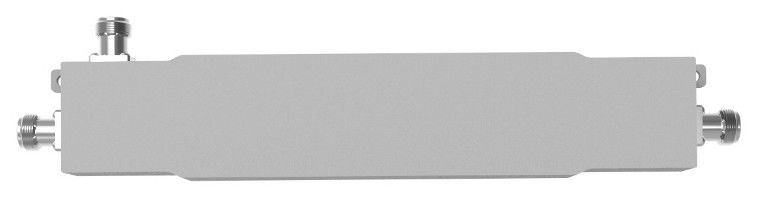

300-1000MHz N Female Directional Coupler High Isolation
  • name
  • name

300-1000MHz N Female Directional Coupler High Isolation

MOQ: 5 pcs
Price: negotiable
Payment Method: L/C, D/A, D/P, T/T
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
ISO 9000 ROHS
Model Number
VN-DC-0310-ONX
Connector Type:
N Female
Frequency Range:
300-1000MHz
Operating Temperature:
-40°C~+80°C
VSWR:
≤1.25
Highlight:

1000MHz N Female Directional Coupler

,

High Isolation N Female Directional Coupler

Product Description

300-1000MHz N Female Directional Coupler



  • Good returen loss
  • High isolation
  • Good VSWR



                                                                                                                   VN-DC-0310-ONX.pdf

Part Number VN-DC-0310-ONX
Operating Frequency ( GHz ) 300-1000
Impedance ( Ohm ) 50
VSWR ≤1.25
Coupling (dB)@x 5 6 7 10 15 20
Tolerance ± 0.8 ± 0.8 ± 0.8 ± 1.0 ± 1.0 ± 1.5
Insertion Loss (dB) ≤2.1 ≤1.6 ≤1.5 ≤.0.8 ≤0.4 ≤0.22
Isolation (dB) ≥25 ≥26 ≥27 ≥30 ≥35 ≥40
IM3 (dBc @ 2×43dBm) -140 / -150 / -155
Application Indoor
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Female
Handling Power (Watt, max) 300
Peak Power (Watt, max) 1200
Dimension (mm)(L×W×H, excl connector) 169×52×24.5
ROHS Compliance Yes









300-1000MHz N Female Directional Coupler High Isolation 0300-1000MHz N Female Directional Coupler High Isolation 1
