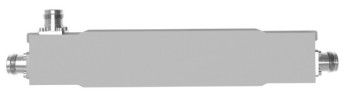

Versatile 300-1000MHz 4.3-10 Female Directional Coupler

Name: Versatile 300-1000MHz 4.3-10 Female Directional Coupler
Brand: HeFei Vinncom Electronic Technology Co.,Ltd.
SKU: VN-DC-0310-OPX
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: ISO 9000 ROHS

Model Number: VN-DC-0310-OPX

Payment & Shipping Terms

Minimum Order Quantity: 5 pcs

Price: negotiable

Payment Terms: L/C, D/A, D/P, T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                    Versatile Directional Coupler, 1000MHz Directional Coupler, Female Directional Coupler


Connector Type:	4.3-10 Female	Frequency Range:	300-1000MHz
Operating Temperature:	-40°C~+80°C	VSWR:	≤1.25

Connector Type:	4.3-10 Female
Frequency Range:	300-1000MHz
Operating Temperature:	-40°C~+80°C
VSWR:	≤1.25

Description

Versatile 300-1000MHz 4.3-10 Female Directional Coupler

300-1000MHz 4.3-10 Female Directional Coupler

Good returen loss
High isolation
Good VSWR

VN-DC-0310-OPX.pdf

Part Number	VN-DC-0310-OPX
Operating Frequency ( GHz )	300-1000
Impedance ( Ohm )	50
VSWR	≤1.25
Coupling (dB)@x	5	6	7	10	15	20
Tolerance	± 0.8	± 0.8	± 0.8	± 1.0	± 1.0	± 1.5
Insertion Loss (dB)	≤2.1	≤1.6	≤1.5	≤.0.8	≤0.4	≤0.22
Isolation (dB)	≥25	≥26	≥27	≥30	≥35	≥40
IM₃ (dBc @ 2×43dBm)	-140 / -150 / -155
Application	Indoor
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	4.3-10 Female
Handling Power (Watt, max)	500
Peak Power (Watt, max)	1500
Dimension (mm)(L×W×H, excl connector)	169×52×31.5
ROHS Compliance	Yes
