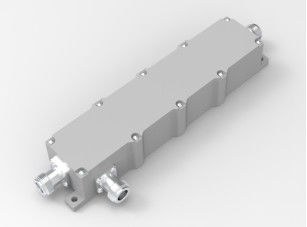

340/380-2700MHz N Female Directional Coupler for Signal Distribution

MOQ:	5 pcs
Price:	negotiable
Payment Method:	L/C, D/A, D/P, T/T

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Vinncom

Certification

ISO 9000 ROHS

Model Number

VN-DC-03427-ONx-xxx

Connector Type:

N Female

Frequency Range:

340/380-2700MHz

Operating Temperature:

-40°C~+80°C

VSWR:

≤1.25

Highlight:

N Female Directional Coupler

2700MHz Directional Coupler

N Female Directional Coupler Signal Distribution

Product Description

340/380-2700MHz N Female Directional Coupler

Good returen loss
High isolation
Good VSWR

VN-DC-03427-ONx-xxx.pdf

Part Number	VN-DC-03427-ONx-xxx
Operating Frequency ( MHz )	340/380-2700MHz
Impedance ( Ohm )	50
VSWR	≤1.25
Coupling (dB)@x	6 ± 1.2	7 ± 1.2	8± 1.2	10± 1.2	15 ± 1.5	20 ± 1.7	30 ± 1.8
Insertion Loss (dB)	≤1.8	≤1.5	≤1.1	≤.0.9	≤0.4	≤0.2	≤0.17
Isolation (dB)	≥24	≥25	≥26	≥28	≥33	≥38	≥48
IM3 (dBc @ 2×43dBm)@xxx	-150/ -160 / -163 /-165
Application	Indoor/Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	N Female
Handling Power (Watt, max)	300
Peak Power	1200 (Watt, max)
Dimension (mm)	182.5 × 44× 31
Net Weight (g)	700± 5%
Packing Dimensions (mm)	240 × 80 × 35
Packing Carton Size (mm)	500 × 420 × 160
ROHS Compliance	Yes

340/380-2700MHz N Female Directional Coupler for Signal Distribution 0
