340/380-2700MHz DIN Female Directional Coupler For Industrial
  • name

340/380-2700MHz DIN Female Directional Coupler For Industrial

MOQ: 5 pcs
Price: negotiable
Payment Method: L/C, D/A, D/P, T/T
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
ISO 9000 ROHS
Model Number
VN-DC-03427-ODx-xxx
Connector Type:
DIN Female
Frequency Range:
340/380-2700MHz
Operating Temperature:
-40°C~+80°C
VSWR:
≤1.25
Highlight:

2700MHz DIN Female Directional Coupler

,

DIN Female Directional Coupler

,

340MHz Directional Coupler

Product Description

340/380-2700MHz DIN Female Directional Coupler



  • Good PIM up to -163@43dBm*2
  • Good returen loss
  • Good VSWR



                                                VN-DC-03427-ODx-xxx.pdf

Part Number VN-DC-03427-ODx-xxx
Operating Frequency ( MHz ) 340/380-2700MHz
Impedance ( Ohm ) 50
VSWR ≤1.25
Coupling (dB)@x 6 ± 1.2 7 ± 1.2 8± 1.2 10± 1.2 15 ± 1.5 20 ± 1.7 30 ± 1.8
Insertion Loss (dB) ≤1.8 ≤1.5 ≤1.1 ≤.0.9 ≤0.4 ≤0.2 ≤0.17
Isolation (dB) ≥24 ≥25 ≥26 ≥28 ≥33 ≥38 ≥48
IM3 (dBc @ 2×43dBm)@xxx -150/ -160 / -163/-165
Application Indoor/Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface DIN Female
Handling Power (Watt, max) 500
Peak Power 1500 (Watt, max)
Dimension (mm) 182.5 × 44× 31
Net Weight (g) 835±5%
Packing Dimensions (mm) 280 ×80 × 35
Packing Carton Size (mm) 580 × 420 × 160
ROHS Compliance Yes

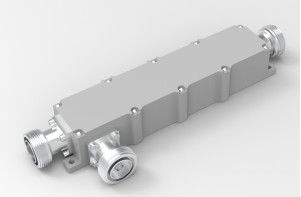

                                                                                                                                                      340/380-2700MHz DIN Female Directional Coupler For Industrial 0340/380-2700MHz DIN Female Directional Coupler For Industrial 1
