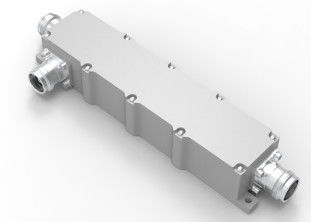

340/380-2700MHz 4.3-10 Female Directional Coupler

Name: 340/380-2700MHz 4.3-10 Female Directional Coupler
Brand: HeFei Vinncom Electronic Technology Co.,Ltd.
SKU: VN-DC-03427-OPx-xxx
Price: 360.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: ISO 9000 ROHS

Model Number: VN-DC-03427-OPx-xxx

Payment & Shipping Terms

Minimum Order Quantity: 5 pcs

Price: negotiable

Payment Terms: L/C, D/A, D/P, T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                              Female Directional Coupler, 340/380-2700MHz Directional Coupler


Connector Type:	4.3-10 Female	Frequency Range:	340/380-2700MHz
Operating Temperature:	-40°C~+80°C	VSWR:	≤1.25

Connector Type:	4.3-10 Female
Frequency Range:	340/380-2700MHz
Operating Temperature:	-40°C~+80°C
VSWR:	≤1.25

Description

340/380-2700MHz 4.3-10 Female Directional Coupler

340/380-2700MHz 4.3-10 Female Directional Coupler

Wide band
Good returen loss
Good VSWR

VN-PS-0310-OPx-S-xxx.pdf

Part Number	VN-DC-03427-OPx-xxx
Operating Frequency ( MHz )	340/380-2700MHz
Impedance ( Ohm )	50
VSWR	≤1.25
Coupling (dB)@x	6 ± 1.2	7 ± 1.2	8± 1.2	10± 1.2	15 ± 1.5	20 ± 1.7	30 ± 1.8
Insertion Loss (dB)	≤1.8	≤1.5	≤1.1	≤.0.9	≤0.4	≤0.2	≤0.17
Isolation (dB)	≥24	≥25	≥26	≥28	≥33	≥38	≥48
IM3 (dBc @ 2×43dBm)@xxx	-160 / -163
Application	Indoor/Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	4.3-10 Female
Handling Power (Watt, max)	500
Peak Power	1500 (Watt, max)
Dimension (mm)	182.5 × 44× 31
Net Weight (g)	775± 5%
Packing Dimensions (mm)	240 × 80 × 35
Packing Carton Size (mm)	500 × 420 × 160
ROHS Compliance	Yes
