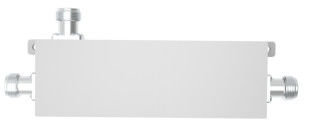

350-6000MHz N Female Directional Coupler For Wireless Communication Systems

MOQ:	5 pcs
Price:	negotiable
Payment Method:	L/C, D/A, D/P, T/T

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Vinncom

Certification

ISO 9000 ROHS

Model Number

VN-DC-03560-ONx-XXX

Connector Type:

N Female

Frequency Range:

350-6000MHz

Operating Temperature:

-40°C~+80°C

VSWR:

≤1.30

Highlight:

350 MHz Directional Coupler

N Female Directional Coupler for Signal

Product Description

350-6000MHz N Female Directional Coupler

Good returen loss
Good PIM up to -165@43dBm*2
Good VSWR

VN-DC-03860-ONx-160.pdf

Part Number	VN-DC-03560-ONx-XXX
Operating Frequency ( MHz )	350-6000MHz
Impedance ( Ohm )	50
VSWR	≤1.30
Coupling (dB)	5 ± 2	6 ± 2	7 ± 2	10 ±2	15 ± 2.3	20 ± 2.3
Insertion Loss (dB)	≤3.00	≤2.2	≤1.7	≤1.1	≤0.8	≤0.3
Isolation (dB)@MHz	≥20	≥21	≥22	≥23	≥30	≥35
IM3 (dBc) @ 2×43dBm@xxx	-150/-160/-163/-165
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	N Female
Handling Power	200 (Watt, max)
Peak Power	1200 (Watt, max)
Dimension (mm)	156.9× 44× 31
Net Weight (g)	590± 5%
Packing Dimensions (mm)	240 × 80 × 35
Packing Carton Size(mm)	420 × 250 × 160
ROHS Compliance	Yes
