600-4200MHz DIN Female Directional Coupler For Accurate Signal Measurement
  • name
  • name
  • name

600-4200MHz DIN Female Directional Coupler For Accurate Signal Measurement

MOQ: 5 pcs
Price: negotiable
Payment Method: L/C, D/A, D/P, T/T
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
ISO 9000 ROHS
Model Number
VN-DC-0642-ODx-xxx
Connector Type:
DIN Female
Frequency Range:
600-4200MHz
Operating Temperature:
-40°C~+80°C
VSWR:
≤1.25
Highlight:

DIN Female Directional Coupler

,

4200MHz DIN Female Directional Coupler

Product Description

600-4200MHz DIN Female Directional Coupler



  • Good PIM up to -163@43dBm*2
  • Wide band
  • Good VSWR



                                                       VN-DC-0642-ODx-xxx.doc.pdf

Part Number VN-DC-0642-ODx-xxx
Operating Frequency ( MHz ) 600-4200MHz
Impedance ( Ohm ) 50
VSWR ≤1.25
Coupling (dB)@x 5 6 7 10 15 20 30
Tolerance ± 1.2 ± 1.2 ± 1.2 ± 1.2 ± 1.5 ± 1.7 ± 1.8
Insertion Loss (dB) ≤2.3 ≤1.8 ≤1.5 ≤.0.8 ≤0.6 ≤0.4 ≤0.2
Isolation (dB) ≥20 ≥21 ≥22 ≥25 ≥30 ≥35 ≥45
IM3 (dBc @ 2×43dBm)@xxx -150/ -160 / -163 /-165
Application Indoor/Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface DIN Female
Handling Power (Watt) max) 500
Peak Power 1500 (Watt, max)
Dimension (mm) 138 × 44× 31.5
Packing Dimensions (mm) 240 × 80 × 35
Packing Carton Size (mm) 500 ×420 × 160
ROHS Compliance Yes

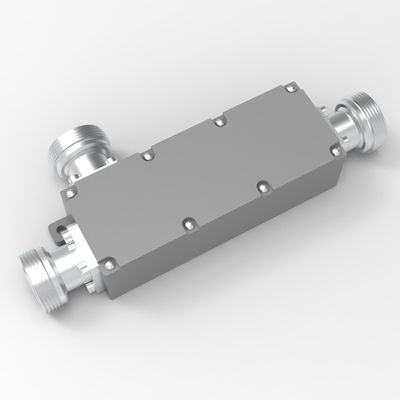

600-4200MHz DIN Female Directional Coupler For Accurate Signal Measurement 0600-4200MHz DIN Female Directional Coupler For Accurate Signal Measurement 1
