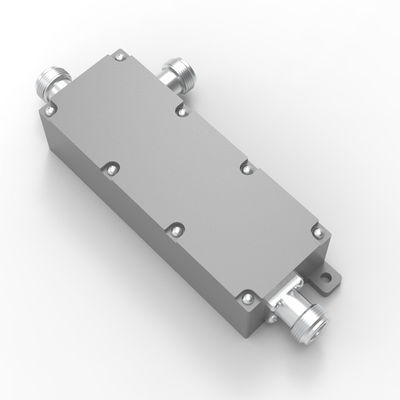

600-4200MHz N Female Directional Coupler For Precise Signal Splitting

Name: 600-4200MHz N Female Directional Coupler For Precise Signal Splitting
Brand: Vinncom
SKU: VN-DC-0642-ONx-xxx
Rating: 4.5 (141 reviews)

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: ISO 9000 ROHS

Model Number: VN-DC-0642-ONx-xxx

Payment & Shipping Terms

Minimum Order Quantity: 5 pcs

Price: negotiable

Payment Terms: L/C, D/A, D/P, T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                    600MHz Directional Coupler, N Female Directional Coupler, Versatile N Female Directional Coupler


Connector Type:	N Female	Frequency Range:	600-4200MHz
Operating Temperature:	-40°C~+80°C	VSWR:	≤1.25

Connector Type:	N Female
Frequency Range:	600-4200MHz
Operating Temperature:	-40°C~+80°C
VSWR:	≤1.25

Description

600-4200MHz N Female Directional Coupler For Precise Signal Splitting

600-4200MHz N Female Directional Coupler

High directivity
Wide band
Good VSWR

VN-DC-0642-ONx-xxx.doc.pdf

Part Number	VN-DC-0642-ONx-xxx
Operating Frequency ( MHz )	600-4200MHz
Impedance ( Ohm )	50
VSWR	≤1.25
Coupling (dB)@x	5	6	7	10	15	20	30
Tolerance	± 1.2	± 1.2	± 1.2	± 1.2	± 1.5	± 1.7	± 1.8
Insertion Loss (dB)	≤2.3	≤1.8	≤1.5	≤.0.8	≤0.6	≤0.4	≤0.2
Isolation (dB)	≥20	≥21	≥22	≥25	≥30	≥35	≥45
IM3 (dBc @ 2×43dBm)@xxx	-150/ -160 / -163/-165
Application	Indoor/Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	N Female
Handling Power (Watt) max)	300
Peak Power	1200 (Watt, max)
Dimension (mm)	138 × 44× 31.5
Packing Dimensions (mm)	240 × 80 × 35
Packing Carton Size (mm)	500 ×420 × 160
ROHS Compliance	Yes
