698-4200MHz N Female Directional Coupler For Signal Distribution

Hot Products

Test Cable And Jumper

sales@vinncom.com

+8617755151077

Contact Now

698-4200MHz N Female Directional Coupler For Signal Distribution

MOQ:	5 pcs
Price:	negotiable
Payment Method:	L/C, D/A, D/P, T/T

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Vinncom

Certification

ISO 9000 ROHS

Model Number

VN-DC-0742-ONx-150

Connector Type:

N Female

Frequency Range:

698-4200MHz

Operating Temperature:

-40°C~+80°C

VSWR:

≤1.25

Highlight:

698MHz Directional Coupler

N Female Directional Coupler

Product Description

698-4200MHz N Female Directional Coupler

Good VSWR
Wide band
Good PIM

VN-DC-0742-ONx-150.doc.pdf

Part Number	VN-DC-0742-ONx-150
Operating Frequency ( MHz )	698-4200MHz
Impedance ( Ohm )	50
VSWR	≤1.25
Coupling (dB)@x	5	6	7	10	15	20	30
Tolerance	± 1.2	± 1.2	± 1.2	± 1.2	± 1.5	± 1.7	± 1.8
Insertion Loss (dB)	≤2.3	≤1.8	≤1.5	≤.0.8	≤0.6	≤0.4	≤0.2
Isolation (dB)	≥20	≥21	≥22	≥25	≥30	≥35	≥45
IM3 (dBc @ 2×43dBm)	-150
Application	Indoor/Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	N Female
Handling Power (Watt) max)	300
Peak Power	1200 (Watt, max)
Dimension (mm)	138 × 44× 31.5
Packing Dimensions (mm)	240 × 80 × 35
Packing Carton Size (mm)	500 ×420 × 160
ROHS Compliance	Yes

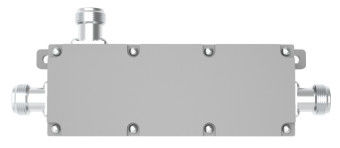

698-4200MHz N Female Directional Coupler For Signal Distribution 0
