Name: 150-1000MHz N Female Directional Coupler
Brand: HeFei Vinncom Electronic Technology Co.,Ltd.
SKU: VN-DC-15001-ONx-xxx
Price: 360.00 USD
Availability: InStock

MOQ:	5 pcs
Price:	negotiable
Payment Method:	L/C, D/A, D/P, T/T

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Vinncom

Certification

ISO 9000 ROHS

Model Number

VN-DC-15001-ONx-xxx

Connector Type:

N Female

Frequency Range:

150-1000MHz

Operating Temperature:

-40°C~+80°C

VSWR:

≤1.30

Product Description

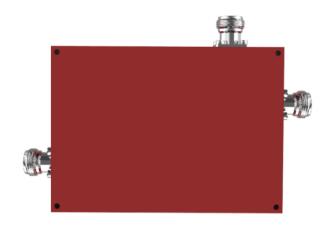

150-1000MHz N Female Directional Coupler

Good returen loss
High isolation
Good VSWR

VN-DC-15001-ONx-xxx.doc.pdf

Part Number	VN-DC-15001-ONx-xxx
Operating Frequency ( MHz )	150-1000MHz
Impedance ( Ohm )	50
VSWR	≤1.30
Coupling (dB)@x	5	6	7	10	15	20	25	30	40
Tolerance	± 1.5	± 1.5	± 1.6	± 1.7	± 1.7	± 1.7	± 2.0	± 2.0	± 2.5
Insertion Loss (dB)	≤2.15	≤1.8	≤1.5	≤1.2	≤0.5	≤.0.4	≤0.4	≤0.3	≤0.3
Isolation (dB)	≥23	≥24	≥25	≥28	≥33	≥38	≥43	≥45	≥52
IM₃ (dBc @ 2×43dBm)@xxx	-150
Application	Indoor/Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	N Female
Handling Power (Watt) max)	300
Peak Power	1200 (Watt, max)
Dimension (mm)	165×100×23
Net Weight (g)	870± 5%
Packing Dimensions (mm)	230×135×35
Packing Carton Size (mm)	470×280×115
ROHS Compliance	Yes

Tags:

directional coupler,

coaxial directional coupler,

transformer directional coupler
