DC-6000MHz Attenuator SMA Male To SMA Female
  • name
  • name

DC-6000MHz Attenuator SMA Male To SMA Female

MOQ: 5 pcs
Price: negotiable
Payment Method: L/C, D/A, D/P, T/T
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
ISO 9000 ROHS
Model Number
VN-AT-6G-50W-SMA30
Operating Frequency ( MHz ):
DC-6000
VSWR:
≤1.30
Interface:
SMA Male - SMA Female
Application:
Indoor
Product Description

DC-6000MHz 50W Attenuator SMA Male To SMA FemaleDC-6000MHz Attenuator SMA Male To SMA Female 0



  • High attenuation accuracy
  • Wide working frequency range
  • High indicator stability



RF attenuators model number VN-AT-4G-200W-IPX-R.RF attenuators has been

manufactured with the highest quality materials to ensure long-lasting use and durability.

These RF attenuators can be fixed, switched,surface mounted or even continuously variable.



VN-AT-6G-50W-SMA30.pdf

Part Number VN-AT-6G-50W-SMA30
Operating Frequency ( MHz ) DC-6000
Impedance ( Ohm ) 50
VSWR ≤1.30
Attenuation(dB) 30
Attenuation Tolerance(dB) ±1.3
Interface SMA Male - SMA Female
Operating Temperature ( ℃ ) -40 ~ + 80
Application Indoor
Handling Power (Watt, max) 50

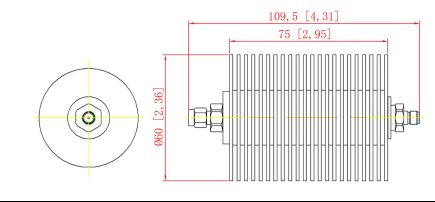

Dimension (mm)(L*W*H, excl connector) Φ60X75
Packing Dimensions (mm,L*W*H) 65X65X210
Packing Carton Size (mm,L*W*H) 350X350X220
ROHS Compliance Yes







                          DC-6000MHz Attenuator SMA Male To SMA Female 1DC-6000MHz Attenuator SMA Male To SMA Female 2
