18-26.5GHz WR-42 WAVEGUIDE LOAD VN-WGLD-1826-WR42
  • name
  • name

18-26.5GHz WR-42 WAVEGUIDE LOAD VN-WGLD-1826-WR42

MOQ: 5 pcs
Price: negotiable
Payment Method: L/C, D/A, D/P, T/T
Supply Capacity: 500
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
ISO 9000 ROHS
Model Number
VN-WGLD-1826-WR42
Part Number:
VN-WGLD-1826-WR42
Operating Frequency ( GHz ):
18-26.5
Impedance ( Ohm ):
50
VSWR:
≤1.03
Interface:
WR42(BJ220)
Highlight:

VN-WGLD-1826-WR42 Waveguide load

,

18-26.5GHz Waveguide load

Product Description



18-26.5GHz WR-42 WAVEGUIDE LOAD



  • Reduced system damage risk
  • Compact and rugged construction
  • Reliable termination of unused waveguide ports



  • Port Termination:
    Connect the flanged input of the WAVEGUIDE LOAD directly to an unused waveguide port, circulator port, or directional coupler port. Ensure the flange type (e.g., UG, CPR, cover, choke) matches the system.

  • Power Handling Consideration:

  • Select a WAVEGUIDE LOAD with average power rating exceeding the maximum expected power. For pulsed systems, verify peak power capability.

  • Cooling Requirement:

    • Low‑power WAVEGUIDE LOAD → natural air cooling.

    • Medium‑power → forced air cooling (e.g., built‑in fan).

    • High‑power → water‑cooled WAVEGUIDE LOAD with circulating deionized water.

  • Installation Orientation:
    Some high‑power WAVEGUIDE LOAD must be mounted with the fins vertical to optimize convection. Always follow the datasheet of that specific WAVEGUIDE LOAD.

  • Verification:
    After installation, use a network analyzer to confirm that the WAVEGUIDE LOAD presents a return loss better than 30 dB (VSWR < 1.065).



                             VN-WGLD-1826-WR42.pdf

Part NumberVN-WGLD-1826-WR42
Operating Frequency ( GHz )18-26.5
Impedance ( Ohm )50
VSWR≤1.03
Operating Temperature ( ℃ )-40 ~ + 80
InterfaceWR42(BJ220)

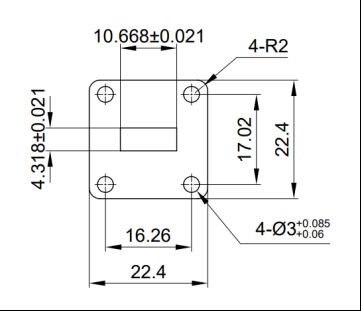

Dimension(mm)As below
Handling Power2 (Watt, max)
ROHS ComplianceYes




18-26.5GHz WR-42 WAVEGUIDE LOAD VN-WGLD-1826-WR42 018-26.5GHz WR-42 WAVEGUIDE LOAD VN-WGLD-1826-WR42 1
