Name: 6GHz WAVEGUIDE DUPLEXER
Brand: HeFei Vinncom Electronic Technology Co.,Ltd.
SKU: VN-WGD-OMT-06
Price: 414.00 USD
Availability: InStock

MOQ:	5 pcs
Price:	negotiable
Payment Method:	L/C, D/A, D/P, T/T
Supply Capacity:	500

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Vinncom

Certification

ISO 9000 ROHS

Model Number

VN-WGD-OMT-06

Part Number:

VN-WGD-OMT-06

Operating Frequency ( GHz ):

Flatness(dB):

≤0.8dB(Random ±30MHz Span)

Group Delay Variation:

≤15ns (Random ±30MHz Span)

Return Loss (dB):

≥15.0dB

Insertion Loss(dB):

≤1.8dB

Rejections(Low To ANT):

≥70dB@f3-f4 ≥50dB@30MHz-(f1-DS) ≥40dB@f4-2*f1 ≥30dB@2*f1-26GHz

Rejections(High To ANT):

≥70dB@f1-f2 ≥50dB@30MHz-f1 ≥40dB@(f4+DS)-2*f3 ≥30dB@2*f3-26GHz

Highlight:

6GHz waveguide duplexer

waveguide duplexer device

6GHz waveguide device

Product Description

6GHz WAVEGUIDE DUPLEXER

Factory‑tuned for specific Tx/Rx frequency pairs
Rugged and precision‑machined waveguide construction
Frequency‑selective operation (separates Tx and Rx bands)

How to Use a WAVEGUIDE DUPLEXER (Usage Method)

Identify the three ports –
A WAVEGUIDE DUPLEXER has three ports clearly labeled: Antenna port (common), Transmitter port (Tx), and Receiver port (Rx).
Connect the antenna to the common port –
Connect the antenna feed to the common (Antenna) port of the WAVEGUIDE DUPLEXER.
Connect transmitter to Tx port –
Connect the transmitter or power amplifier output to the Tx port of the WAVEGUIDE DUPLEXER.
Terminate any unused ports –If a WAVEGUIDE DUPLEXER has an extra port (e.g., circulator‑based designs), terminate it with a WAVEGUIDE LOAD to prevent reflections.
Power rating verification –
Before operating a WAVEGUIDE DUPLEXER, verify the average and peak power ratings for the Tx port.

Part Number	VN-WGD-OMT-06
Operating Frequency ( GHz )	6
Insertion Loss(dB)	≤1.8dB
Flatness(dB)	≤0.8dB(Random ±30MHz span)
Group Delay Variation	≤15ns (Random ±30MHz span)
Return Loss (dB)	≥15dB
Rejections(Low to ANT)	≥70dB@f3-f4 ≥50dB@30MHz-(f1-DS) ≥40dB@f4-2f1 ≥30dB@2f1-26GHz
Rejections(High to ANT)	≥70dB@f1-f2 ≥50dB@30MHz-f1 ≥40dB@(f4+DS)-2f3 ≥30dB@2f3-26GHz
Cross-polar Isolation	≥35dB(25)

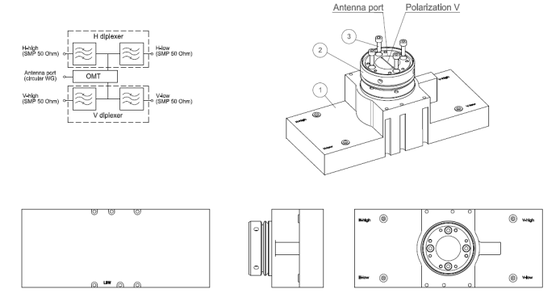

Dimension(mm)	As below
ROHS Compliance	Yes

6GHz WAVEGUIDE DUPLEXER
