Name: 32GHz WR-28 WAVEGUIDE DUPLEXER
Brand: HeFei Vinncom Electronic Technology Co.,Ltd.
SKU: VN-WGD-32-WR28
Price: 414.00 USD
Availability: InStock

MOQ:	5 pcs
Price:	negotiable
Payment Method:	L/C, D/A, D/P, T/T
Supply Capacity:	500

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Vinncom

Certification

ISO 9000 ROHS

Model Number

VN-WGD-32-WR28

Part Number:

VN-WGD-32-WR28

Operating Frequency ( GHz ):

Flatness(dB):

≤0.5dB

Islotation (Lchannel ToH Channel):

≥65dB

Return Loss (dB):

≥18dB

Insertion Loss(dB):

≤1.5dB

Interface:

WR62 (BJ140)

Highlight:

32GHz WR-28 waveguide duplexer

WR-28 waveguide duplexer 32GHz

32GHz waveguide duplexer device

Product Description

32GHz WR-28 WAVEGUIDE DUPLEXER

Protects sensitive receivers from high‑power transmitter energy
Available in circulator‑based and filter‑based architectures
Rugged and precision‑machined waveguide construction

Verify frequency assignments –
A WAVEGUIDE DUPLEXER is factory‑tuned for specific Tx and Rx frequency bands; ensure that your system frequencies match the WAVEGUIDE DUPLEXER specifications.
Terminate any unused ports –
If a WAVEGUIDE DUPLEXER has an extra port (e.g., circulator‑based designs), terminate it with a WAVEGUIDE LOAD to prevent reflections.
Power rating verification –
Before operating a WAVEGUIDE DUPLEXER, verify the average and peak power ratings for the Tx port.
Observe port labeling –
Never swap the Tx and Rx ports of a WAVEGUIDE DUPLEXER, as the filters are frequency‑specific and the isolation will be lost if reversed.
Pulse radar systems –

A WAVEGUIDE DUPLEXER allows the radar to transmit a high‑power pulse through the antenna and then switch to receive mode to listen for echoes, sharing the same antenna.

6.Continuous‑wave (CW) radar and FMCW radar –

A WAVEGUIDE DUPLEXER enables simultaneous transmit and receive operation for Doppler and frequency‑modulated radar.

Part Number	VN-WGD-32-WR28
Operating Frequency ( GHz )	32
Flatness(dB)	≤0.5dB
Islotation (Lchannel toH channel)	≥65dB
Return Loss (dB)	≥18dB
Insertion Loss(dB)	≤1.5dB
Interface	WR28 (BJ320)

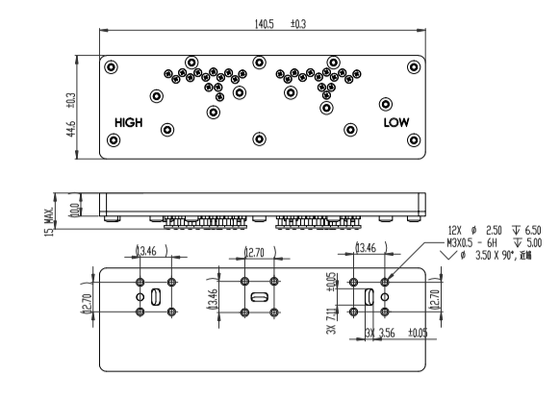

Dimension(mm)	As below
Operating Humidity	5-95%
Operating Temperature ( ℃ )	-40 ~ +80
ROHS Compliance	Yes

32GHz WR-28 WAVEGUIDE DUPLEXER

Tags:

waveguide device,

waveguide load,

waveguide termination load
