Name: 15GHz WR-62 WAVEGUIDE DUPLEXER
Brand: HeFei Vinncom Electronic Technology Co.,Ltd.
SKU: VN-WGD-15-WR62
Price: 414.00 USD
Availability: InStock

MOQ:	5 pcs
Price:	negotiable
Payment Method:	L/C, D/A, D/P, T/T
Supply Capacity:	500

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Vinncom

Certification

ISO 9000 ROHS

Model Number

VN-WGD-15-WR62

Part Number:

VN-WGD-15-WR62

Operating Frequency ( GHz ):

Flatness(dB):

≤0.5dB

Islotation (Lchannel ToH Channel):

≥70dB

Return Loss (dB):

≥18dB

Insertion Loss(dB):

≤1.4dB

Interface:

WR62 (BJ140)

Product Description

15GHz WR-62 WAVEGUIDE DUPLEXER

Protects sensitive receivers from high‑power transmitter energy
Improves system sensitivity by reducing transmitter leakage into receiver
Frequency range from 1 GHz to 110 GHz+

A WAVEGUIDE DUPLEXER provides high isolation between the transmitter and receiver ports, preventing the high‑power transmit signal from damaging the sensitive receiver front‑end.
In a circulator‑based WAVEGUIDE DUPLEXER, the device uses a WAVEGUIDE CIRCULATOR with two band‑pass filters attached to two ports—the circulator directs Tx energy to the antenna and Rx energy from the antenna to the receiver.
In a filter‑based WAVEGUIDE DUPLEXER (using a magic T or T‑junction), the Tx and Rx signals are separated by frequency‑selective filters; the Tx filter passes only the Tx band to the antenna, and the Rx filter passes only the Rx band from the antenna.

Connect receiver to Rx port –
Connect the receiver or LNA input to the Rx port of the WAVEGUIDE DUPLEXER.

Match flange types –
A WAVEGUIDE DUPLEXER requires the same flange type (UG, CPR, cover, or choke) on all three ports as the connected waveguide components.

Verify frequency assignments –
A WAVEGUIDE DUPLEXER is factory‑tuned for specific Tx and Rx frequency bands; ensure that your system frequencies match the WAVEGUIDE DUPLEXER specifications.

Part Number	VN-WGD-15-WR62
Operating Frequency ( GHz )	15
Flatness(dB)	≤0.5dB
Islotation (Lchannel toH channel)	≥70dB
Return Loss (dB)	≥18dB
Insertion Loss(dB)	≤1.4dB
Interface	WR62 (BJ140)

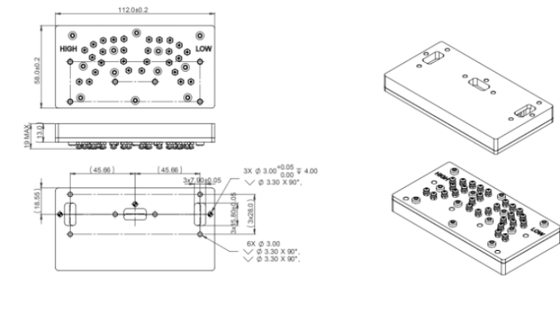

Dimension(mm)	As below
Operating Humidity	5-95%
Operating Temperature ( ℃ )	-40 ~ +80
ROHS Compliance	Yes
