26.5-40GHz WR-28 WAVEGUIDE LOAD VN-WGLD-2640-WR28
  • name
  • name

26.5-40GHz WR-28 WAVEGUIDE LOAD VN-WGLD-2640-WR28

MOQ: 5 pcs
Price: negotiable
Payment Method: L/C, D/A, D/P, T/T
Supply Capacity: 500
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
ISO 9000 ROHS
Model Number
VN-WGLD-2640-WR28
Part Number:
VN-WGLD-2640-WR28
Operating Frequency ( GHz ):
26.5-40
Impedance ( Ohm ):
50
VSWR:
≤1.03
Interface:
WR28(BJ320)
Highlight:

VN-WGLD-2640 WAVEGUIDE LOAD

,

WR-28 WAVEGUIDE LOAD

,

26.5-40GHz WAVEGUIDE LOAD

Product Description



26.5-40GHz WR-28 WAVEGUIDE LOAD VN-WGLD-2640-WR28



  • Low insertion loss (by design, as a terminating load)
  • Low VSWR (Voltage Standing Wave Ratio)
  • Broadband operation



  • Absorption of Microwave Energy:
    A WAVEGUIDE LOAD converts electromagnetic wave energy into heat, preventing standing waves. Any high‑power system requires a WAVEGUIDE LOAD to terminate unused ports.

  • Reduction of Voltage Standing Wave Ratio (VSWR):
    By absorbing nearly all incident power, a WAVEGUIDE LOAD maintains a low VSWR (typically <1.05), ensuring signal source stability and measurement accuracy.

  • Protection of Sensitive Components:
    During transmitter testing or amplifier tuning, a WAVEGUIDE LOAD acts as a dummy antenna. Without a WAVEGUIDE LOAD, reflected power could destroy expensive devices such as magnetrons or solid‑state amplifiers.



                             VN-WGLD-2640-WR28.pdf

Part Number VN-WGLD-2640-WR28
Operating Frequency ( GHz ) 26.5-40
Impedance ( Ohm ) 50
VSWR ≤1.03
Operating Temperature ( ℃ ) -40 ~ + 80
Interface WR28(BJ320)

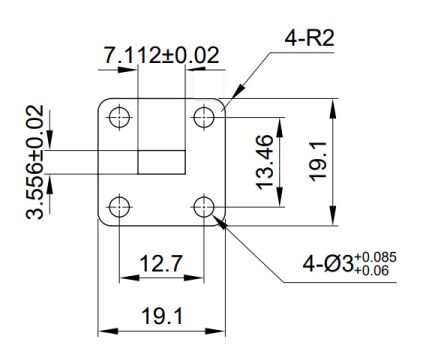

Dimension(mm) As below
Handling Power 2 (Watt, max)
ROHS Compliance Yes







26.5-40GHz WR-28 WAVEGUIDE LOAD VN-WGLD-2640-WR28 026.5-40GHz WR-28 WAVEGUIDE LOAD VN-WGLD-2640-WR28 1
