33-50GHz WR-22 WAVEGUIDE LOAD VN-WGLD-3350-WR22
  • name
  • name

33-50GHz WR-22 WAVEGUIDE LOAD VN-WGLD-3350-WR22

MOQ: 5 pcs
Price: negotiable
Payment Method: L/C, D/A, D/P, T/T
Supply Capacity: 500
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
ISO 9000 ROHS
Model Number
VN-WGLD-3350-WR22
Part Number:
VN-WGLD-3350-WR22
Operating Frequency ( GHz ):
33-50
Impedance ( Ohm ):
50
VSWR:
≤1.06
Interface:
WR22(BJ400)
Highlight:

50GHz Waveguide Load

,

WR-22 Waveguide Load

Product Description



33-50GHz WR-22 WAVEGUIDE LOAD VN-WGLD-3350-WR22



  • Low insertion loss (by design, as a terminating load)
  • Easy flange integration (UG, CPR, cover, choke)
  • Available in air‑cooled, forced‑air, and water‑cooled versions



  • Installation Orientation:
  • Some high‑power WAVEGUIDE LOAD must be mounted with the fins vertical to optimize convection. Always follow the datasheet of that specific WAVEGUIDE LOAD.
  • Verification:
  • After installation, use a network analyzer to confirm that the WAVEGUIDE LOAD presents a return loss better than 30 dB (VSWR < 1.065).
  • Protection of Sensitive Components:During transmitter testing or amplifier tuning, a WAVEGUIDE LOAD acts as a dummy antenna. Without a WAVEGUIDE LOAD, reflected power could destroy expensive devices such as magnetrons or solid‑state amplifiers.

                             VN-WGLD-3350-WR22.pdf

Part Number VN-WGLD-3350-WR22
Operating Frequency ( GHz ) 33-50
Impedance ( Ohm ) 50
VSWR ≤1.06
Operating Temperature ( ℃ ) -40 ~ + 80
Interface WR22(BJ400)
Dimension(mm) As below
Handling Power 2 (Watt, max)
ROHS Compliance Yes

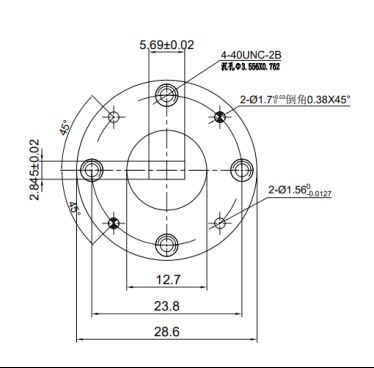

33-50GHz WR-22 WAVEGUIDE LOAD VN-WGLD-3350-WR22 033-50GHz WR-22 WAVEGUIDE LOAD VN-WGLD-3350-WR22 1

Tags:

waveguide device,

waveguide load,

waveguide termination load
