49.8-75.8GHz WR-15 WAVEGUIDE LOAD VN-WGLD-5076-WR15
  • name

49.8-75.8GHz WR-15 WAVEGUIDE LOAD VN-WGLD-5076-WR15

MOQ: 5 pcs
Price: negotiable
Payment Method: L/C, D/A, D/P, T/T
Supply Capacity: 500
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
ISO 9000 ROHS
Model Number
VN-WGLD-5076-WR15
Part Number:
VN-WGLD-5076-WR15
Operating Frequency ( GHz ):
49.8-75.8
Impedance ( Ohm ):
50
VSWR:
≤1.08
Interface:
WR15(BJ620)
Highlight:

WR-15 waveguide load

,

49.8-75.8GHz waveguide device

,

VN-WGLD-5076-WR15 load

Product Description

49.8-75.8GHz WR-15 WAVEGUIDE LOAD



  • Low insertion loss (by design, as a terminating load)

  • Repeatable measurement conditions

  • Reliable termination of unused waveguide ports



  • What it does: A WAVEGUIDE LOAD terminates a waveguide port without reflection → it absorbs energy as heat.

  • Why you need it: Without a WAVEGUIDE LOAD, standing waves and reflected power damage sources.

  • In short, WAVEGUIDE LOAD is not an option – it is a mandatory component in any non‑radiating waveguide setup. Always verify the power rating, flange type, and cooling method before deploying a WAVEGUIDE LOAD in your system.

  • Where it fits: Between a waveguide component and a heat sink (e.g., in the dummy port of a 4‑port circulator).

  • Every RF engineer must know how to select and install a WAVEGUIDE LOAD for safe, repeatable microwave measurements.

                                  VN-WGLD-5076-WR15.pdf

Part Number VN-WGLD-5076-WR15
Operating Frequency ( GHz ) 49.8-75.8
Impedance ( Ohm ) 50
VSWR ≤1.08
Operating Temperature ( ℃ ) -40 ~ + 80
Interface WR15(BJ620)

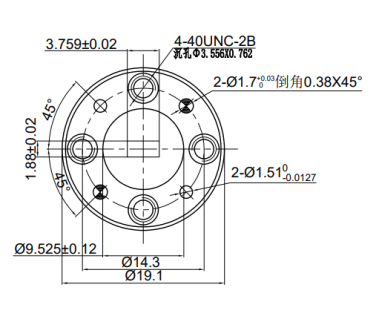

Dimension(mm) As below
Handling Power 0.5 (Watt, max)
ROHS Compliance Yes







49.8-75.8GHz WR-15 WAVEGUIDE LOAD VN-WGLD-5076-WR15 049.8-75.8GHz WR-15 WAVEGUIDE LOAD VN-WGLD-5076-WR15 1

Tags:

waveguide device,

waveguide load,

waveguide termination load
